Washing machine installation service

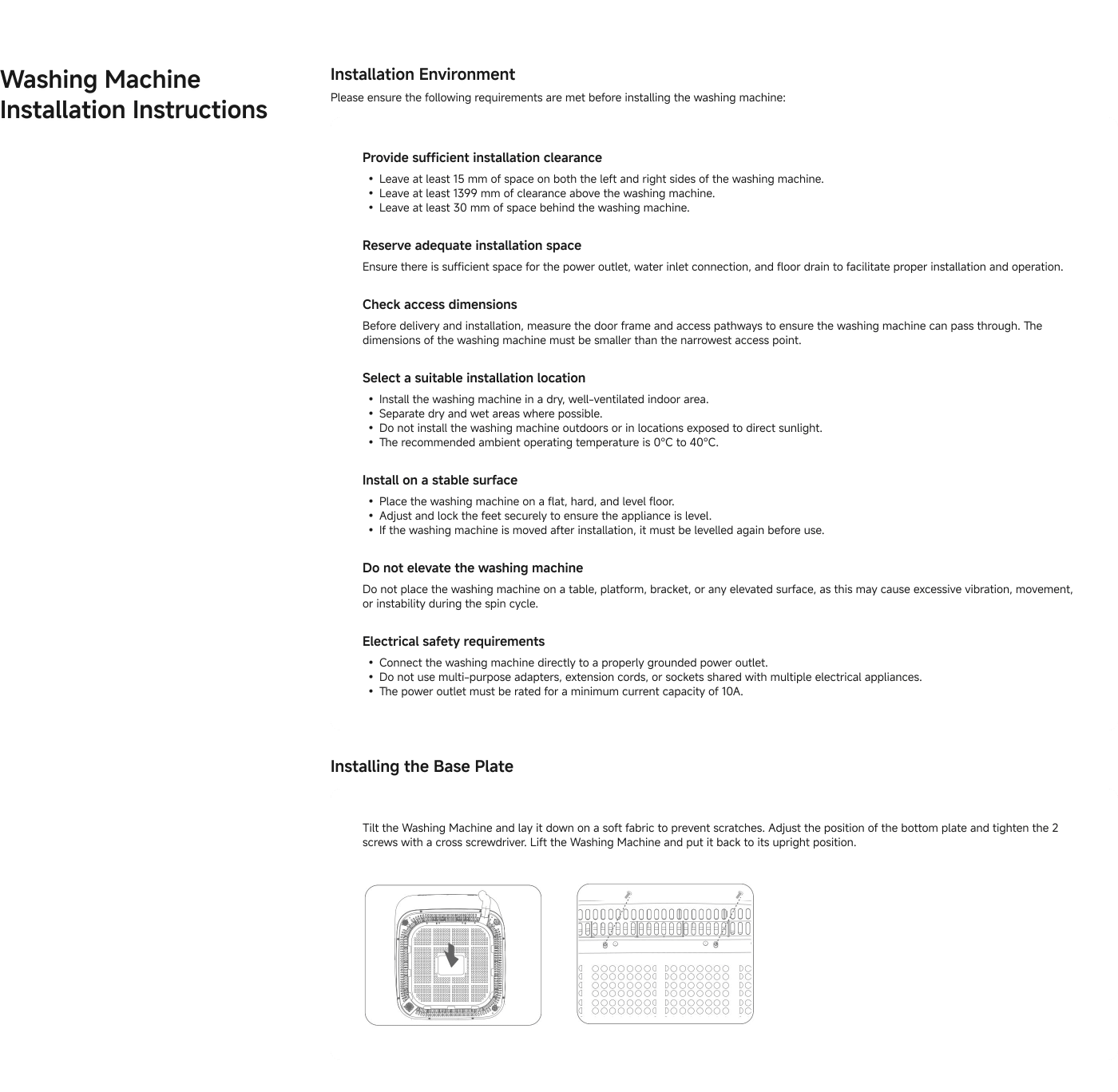

Washing Machine Installation Instructions **Installation Environment** Ensure the following requirements are met before installing the washing machine: 1. **Provide Sufficient Installation Clearance** - Leave at least 15 mm space on both sides. - Leave 1399 mm clearance above. - Leave at least 30 mm space behind. 2. **Reserve Adequate Installation Space** - Ensure space for power outlet, water inlet connection, and floor drain. 3. **Check Access Dimensions** - Measure door frame and pathways to ensure the washing machine can pass through. 4. **Select a Suitable Installation Location** - Install in a dry, well-ventilated indoor area. - Avoid direct sunlight and maintain an ambient temperature of 0°C to 40°C. 5. **Install on a Stable Surface** - Place on a flat, hard, level floor. Level the machine after moving. 6. **Do Not Elevate the Washing Machine** - Avoid placing on elevated surfaces to prevent instability. 7. **Electrical Safety Requirements** - Connect to a grounded outlet rated for 10A. Avoid adapters and shared sockets.
Washing Machine Installation Instructions **Installation Environment** **Installation Size Requirements** - Maintain >15mm space on left and right, >20mm on top, and >30mm at the back. - Ensure adequate space for power supply, water inlet, and floor drain. - Measure door frame size to ensure the washing machine fits. - Best to install in a dry location, avoiding direct sunlight; ambient temperature should be 0°C-40°C. - Do not place on uneven surfaces to prevent vibration displacement. - Install on flat, hard ground and level the machine; avoid moving once leveled. **Safe Use of Electricity** - Avoid using multi-purpose sockets without independent switches. - Ensure the power supply is grounded and can handle at least 10A.
Washing Machine Installation Instructions **Installation Environment** **Installation Size Requirements** - Maintain >15mm space on left and right, >20mm on top, and >30mm at the back. - Ensure adequate space for power supply, water inlet, and floor drain. - Measure door frame size to ensure the washing machine fits. - Best to install in a dry location, avoiding direct sunlight; ambient temperature should be 0°C-40°C. - Do not place on uneven surfaces to prevent vibration displacement. - Install on flat, hard ground and level the machine; avoid moving once leveled. **Safe Use of Electricity** - Avoid using multi-purpose sockets without independent switches. - Ensure the power supply is grounded and can handle at least 10A.

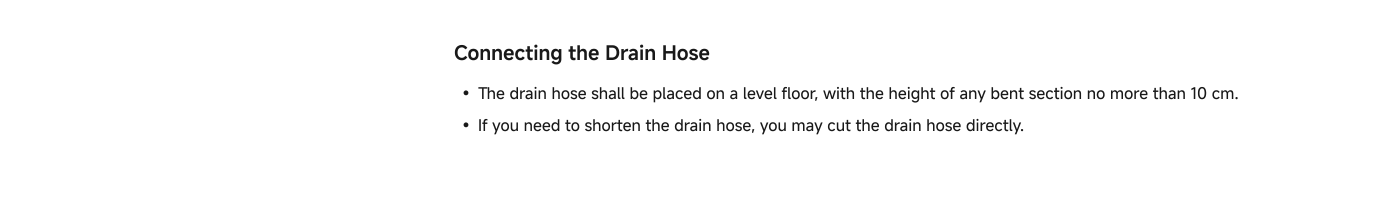

Connecting the drain hose requires it to be positioned on a level floor, ensuring that any bent sections have a height of no more than 10 cm. If necessary, you can shorten the drain hose by cutting it directly.

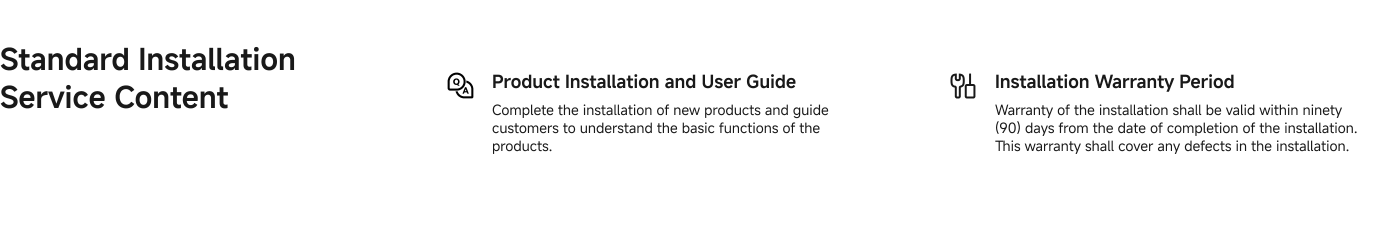

Product Installation and User Guide: Complete the installation of new products and guide customers to understand the basic functions of the products. Installation Warranty Period: Warranty of the installation shall be valid within ninety (90) days from the date of completion. This warranty shall cover any defects in the installation.
Product Installation and User Guide: Complete the installation of new products and guide customers to understand the basic functions of the products. Installation Warranty Period: Warranty of the installation shall be valid within ninety (90) days from the date of completion. This warranty shall cover any defects in the installation.

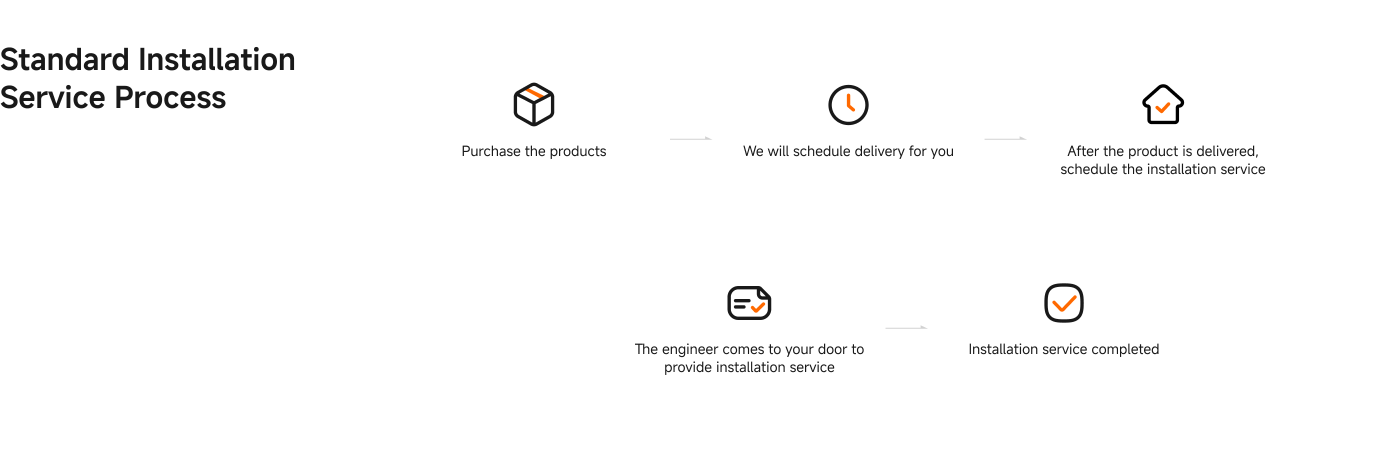

Standard Installation Service Process: 1. Purchase the products. 2. We will schedule delivery for you. 3. After the product is delivered, schedule the installation service. 4. The engineer comes to your door to provide installation service. 5. Installation service completed.
Product Installation and User Guide: Complete the installation of new products and guide customers to understand the basic functions of the products. Installation Warranty Period: Warranty of the installation shall be valid within ninety (90) days from the date of completion. This warranty shall cover any defects in the installation.
Product Installation and User Guide: Complete the installation of new products and guide customers to understand the basic functions of the products. Installation Warranty Period: Warranty of the installation shall be valid within ninety (90) days from the date of completion. This warranty shall cover any defects in the installation.

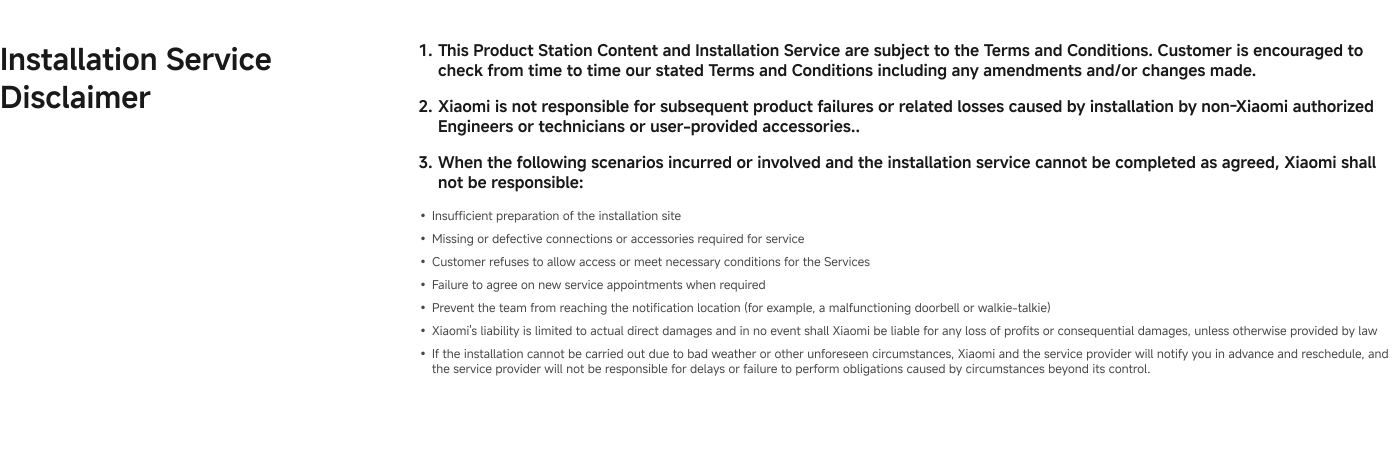

This image contains a disclaimer regarding Xiaomi's installation services, outlining the terms and conditions. It specifies that Xiaomi is not liable for issues related to installation, including insufficient preparation, missing accessories, or customer refusal to meet necessary conditions. Additionally, it states that Xiaomi's liability is limited to direct damages and does not cover consequential damages.
