How to connect the Drain Hose of the Mijia Front Load Washer Dryer 10.5kg?
When connecting the Drain Hose of the Mijia Front Load Washer Dryer 10.5kg, make sure it is fixed securely so that it will not move or fall off during drainage, avoiding property loss due to water leakage.
To connect the Drain Hose of the washing machine, please refer to the following methods:

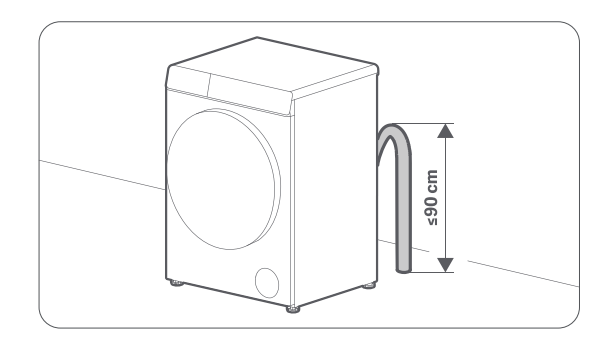

Inserting the Drain Hose directly into the floor drain:
1. To prevent siphoning (water flowing back inside the machine), make sure the height of the vertical hose above the floor drain is not greater than 90 cm, and it is recommended to use a 65 cm vertical hose;
2. When installing, make sure the Drain Hose is obliquely connected to the vertical hose, with the end of the Drain Hose above the water level in the drain.

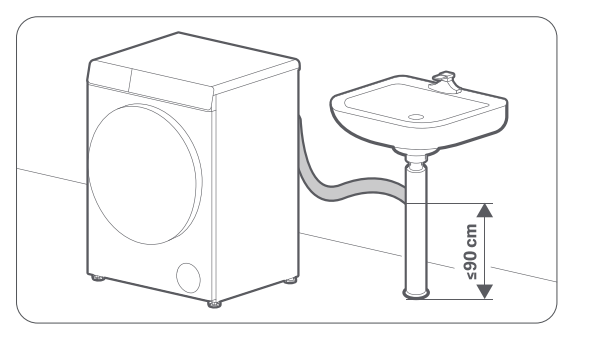

Connecting to a branch of the downpipe:
Connect the end of the Drain Hose to a branch of the sink downpipe, ensuring the height from the connection point to the ground does not exceed 90 cm.
Note:
1. The washing machine uses an upper drainage method. When installing the Drain Hose, the clamp that fixes the Drain Hose cannot be removed, and the Drain Hose cannot be laid flat on the ground;
2. Please make sure that the Drain Hose is firmly fixed to ensure that the Drain Hose will not move or fall off during drainage to avoid property loss due to leakage;
3. The drain hose of the Mijia Front Load Washer Dryer 10.5kg can be extended but cannot be replaced by yourself. For details on how to extend it or what to do if the drain hose is damaged, please contact the after-sales service center.
To connect the Drain Hose of the washing machine, please refer to the following methods:
Inserting the Drain Hose directly into the floor drain:
1. To prevent siphoning (water flowing back inside the machine), make sure the height of the vertical hose above the floor drain is not greater than 90 cm, and it is recommended to use a 65 cm vertical hose;
2. When installing, make sure the Drain Hose is obliquely connected to the vertical hose, with the end of the Drain Hose above the water level in the drain.
Connecting to a branch of the downpipe:
Connect the end of the Drain Hose to a branch of the sink downpipe, ensuring the height from the connection point to the ground does not exceed 90 cm.
Note:
1. The washing machine uses an upper drainage method. When installing the Drain Hose, the clamp that fixes the Drain Hose cannot be removed, and the Drain Hose cannot be laid flat on the ground;
2. Please make sure that the Drain Hose is firmly fixed to ensure that the Drain Hose will not move or fall off during drainage to avoid property loss due to leakage;
3. The drain hose of the Mijia Front Load Washer Dryer 10.5kg can be extended but cannot be replaced by yourself. For details on how to extend it or what to do if the drain hose is damaged, please contact the after-sales service center.
