How to disassemble the Mijia Refrigerator Cross Door 510L compartment shelves?
To disassemble the Mijia Refrigerator Cross Door 510L compartment shelves, please refer to the following steps:

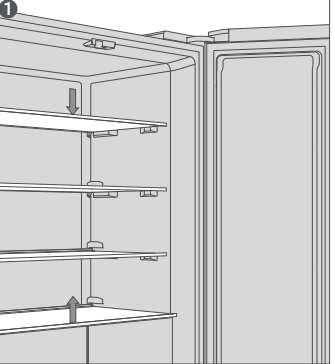

1. Open the fridge door to the maximum angle, and press down the front end of a shelf (lift the lowest shelf upwards) to release the clip at the rear end of the shelf from the slot;

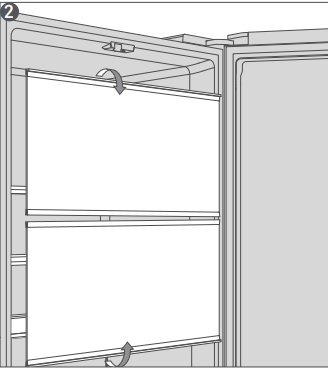

2. Slowly rotate the shelf downward while pulling it forward (rotate the lowest shelf upward) until the shelf is vertical. Hold it securely with both hands;

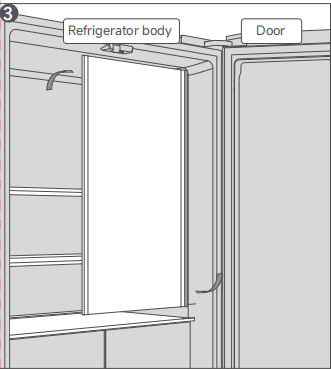

3. Rotate the shelf 90° at the gap between the refrigerator body and the door and then take it out;
Note:
1. For detailed operating instructions, please refer to the reminder sticker on the refrigerator inner walls or the relevant contents in the User Manual;

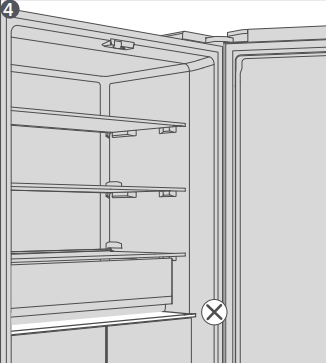

2. The lowest shelf in the fridge compartment cannot be removed. Do not forcibly remove it to avoid damage to the appliance.
1. Open the fridge door to the maximum angle, and press down the front end of a shelf (lift the lowest shelf upwards) to release the clip at the rear end of the shelf from the slot;
2. Slowly rotate the shelf downward while pulling it forward (rotate the lowest shelf upward) until the shelf is vertical. Hold it securely with both hands;
3. Rotate the shelf 90° at the gap between the refrigerator body and the door and then take it out;
Note:
1. For detailed operating instructions, please refer to the reminder sticker on the refrigerator inner walls or the relevant contents in the User Manual;
2. The lowest shelf in the fridge compartment cannot be removed. Do not forcibly remove it to avoid damage to the appliance.
