How to install the Xiaomi Tabletop Dishwasher?

To install the Xiaomi Tabletop Dishwasher, please refer to the following steps:

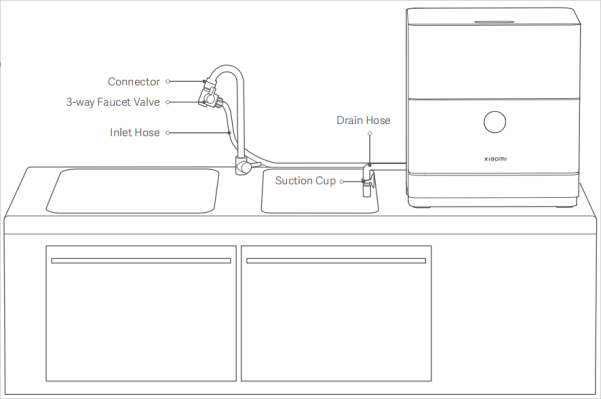

1. The installation of the device mainly involves connecting the inlet and drain hoses and plugging in the power supply. The device should be placed level on the countertop, close to the sink;
Note:
1. The power cord is about 150cm and cannot be removed or cut;
2. The inlet hose is about 150cm and cannot be cut or extended through a connection. If an extension is required, please buy a qualified hose for the extension;
3. The drain hose is about 150cm and can be cut according to the actual demand.

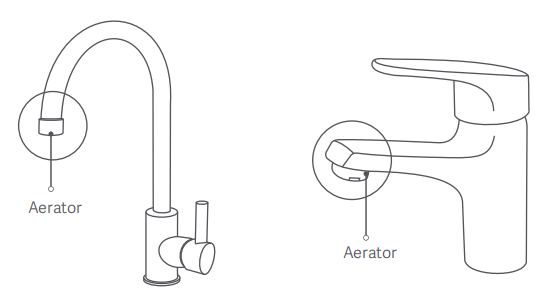

2. Remove the faucet aerator. Manually or using tools such as pliers to remove the aerator without having a slot. Use cloth for additional protection if tools are adopted. Use the included small wrench to remove the aerator with a slot. Choose a wrench socket with a proper size for removal;
Note:
Please keep the aerator properly for future use.

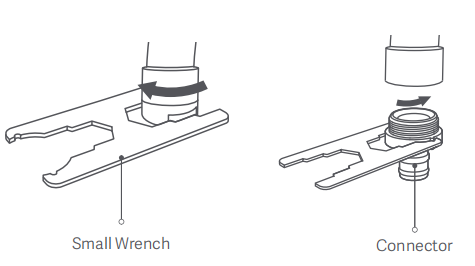

3. Install the connector. Choose a proper connector according to the size and direction of the aerator thread. Gently turn the connector by hand so that the threads engage correctly with the faucet. Then, use the small wrench and hold it horizontally to apply gentle pressure to tighten the connector. After the installation is completed, block the connector by hand and open the faucet to check whether water seeps through the threaded port;

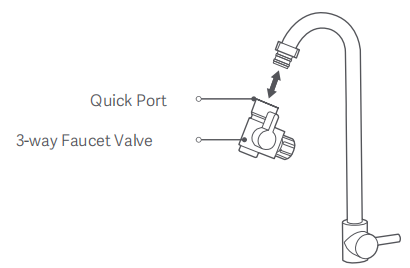

4. Connect the 3-way faucet valve. Hold the 3-way faucet valve, and insert the quick port into the connector already installed in the faucet. When you hear a click sound, the installation of the 3-way faucet valve is completed;
Note:
To remove the 3-way faucet valve, turn off the countertop faucet, remove the inlet hose, and pull the quick port downward.

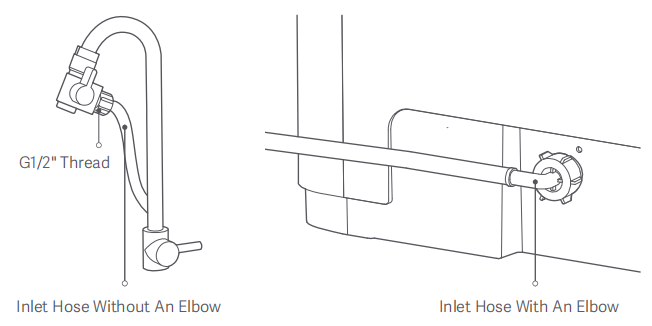

5. Connect the inlet hose. Securely attach the inlet hose without an elbow end to the G1/2" thread of the 3-way faucet valve, then attach the other end to the inlet valve on the back of the dishwasher;

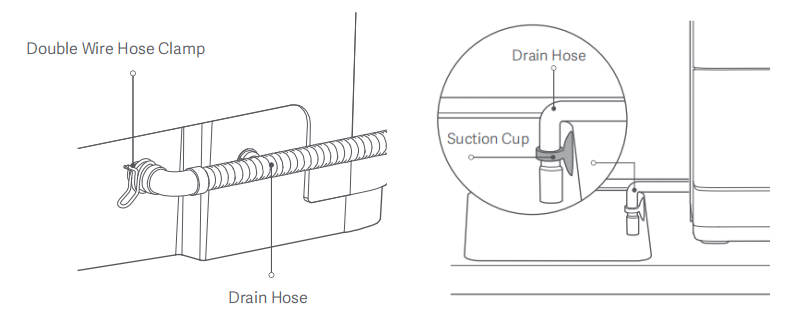

6. Install the drain hose. Insert the drain hose with an elbow end into the outlet on the back of the dishwasher, and install the double wire hose clamp to secure the drain hose to the dishwasher. Secure the other end of the drain hose to the countertop sink using a suction cup.

Note:
1. During operation, the exhaust port on the left side of the dishwasher will release humid steam, and the door switch is located at the top of the device. Regardless of the installation method, it is recommended to leave more than 20cm of adequate space around these two areas;
2. When there is a hanging cabinet above the dishwasher, to ensure normal door opening, the distance from the bottom of the cabinet to the top of the dishwasher must be greater than 50mm. If this distance is less than 50mm, the dishwasher must be moved forward by more than 80mm to prevent the top opening button from being blocked by the upper cabinet.
