What are the steps of the Xiaomi Outdoor Camera AW300 wall mounting?
The Xiaomi Outdoor Camera AW300 is suitable to be installed in a villa, courtyard, terrace, garden, street in front of home, or home interior. (The original adapter power cord that comes with the package is 3 meters long.)
The installation steps are as follows:

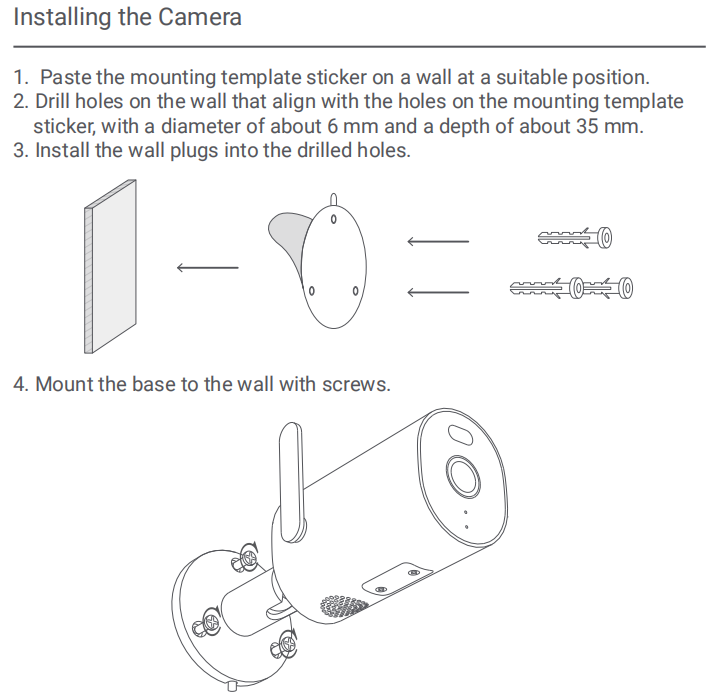

1. Paste the mounting template sticker on a wall at a suitable position;
2. Drill holes on the wall that align with the holes on the mounting template sticker, with a diameter of about 6mm and a depth of about 35mm;
3. Install the wall plugs into the drilled holes;
4. Mount the base to the wall with screws;

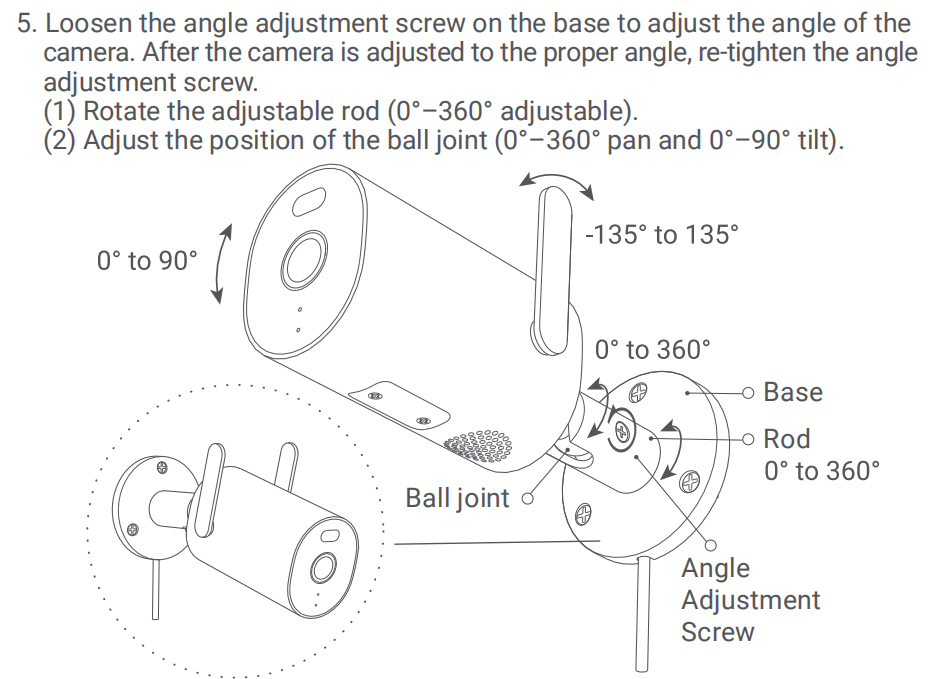

5. Loosen the angle adjustment screw on the base to adjust the angle of the camera. After the camera is adjusted to the proper angle, re-tighten the angle adjustment screw;
(1). Rotate the adjustable rod (0°-360°adjustable);
(2). Adjust the position of the ball joint (0°-360° pan and 0°-90° tilt);
Note:
1. According to actual needs, the camera antenna angle can be adjusted to obtain a better signal;
2. When installing the camera, place the speaker downwards to avoid water accumulation in the sound cavity of the speaker after rainy weather, which will affect the sound effect;
3. To avoid water ingress, please tighten the protective cover of the microSD card slot with a screwdriver before use;
4. The mounting screw holes are in three-hole positions, adjacent holes are spaced 4.8cm apart from center points, and three holes form an equilateral triangle;
5. The camera must be mounted using expansion screws. Do not use double-sided tape, which will cause the camera to fall;

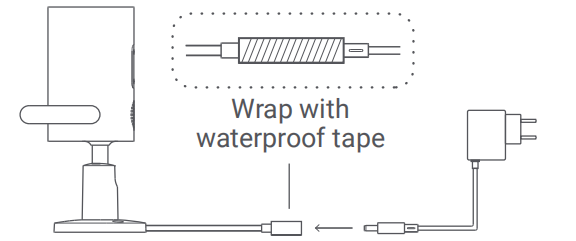

6. When connecting the power cord, be sure to wrap the power connector with waterproof tape to prevent water from entering the interface.
The installation steps are as follows:
1. Paste the mounting template sticker on a wall at a suitable position;
2. Drill holes on the wall that align with the holes on the mounting template sticker, with a diameter of about 6mm and a depth of about 35mm;
3. Install the wall plugs into the drilled holes;
4. Mount the base to the wall with screws;
5. Loosen the angle adjustment screw on the base to adjust the angle of the camera. After the camera is adjusted to the proper angle, re-tighten the angle adjustment screw;
(1). Rotate the adjustable rod (0°-360°adjustable);
(2). Adjust the position of the ball joint (0°-360° pan and 0°-90° tilt);
Note:
1. According to actual needs, the camera antenna angle can be adjusted to obtain a better signal;
2. When installing the camera, place the speaker downwards to avoid water accumulation in the sound cavity of the speaker after rainy weather, which will affect the sound effect;
3. To avoid water ingress, please tighten the protective cover of the microSD card slot with a screwdriver before use;
4. The mounting screw holes are in three-hole positions, adjacent holes are spaced 4.8cm apart from center points, and three holes form an equilateral triangle;
5. The camera must be mounted using expansion screws. Do not use double-sided tape, which will cause the camera to fall;
6. When connecting the power cord, be sure to wrap the power connector with waterproof tape to prevent water from entering the interface.
