How to connect the Water Inlet Hose of the Mijia Front Load Washer Dryer 10.5kg?
The Mijia Front Load Washer Dryer 10.5kg requires careful connection of the water inlet hose, including selecting the appropriate connector, securing fittings properly, and avoiding bending or tightening the hose to ensure reliable water flow.
To connect the Water Inlet Hose of the Mijia Front Load Washer Dryer 10.5kg, please refer to the following steps:

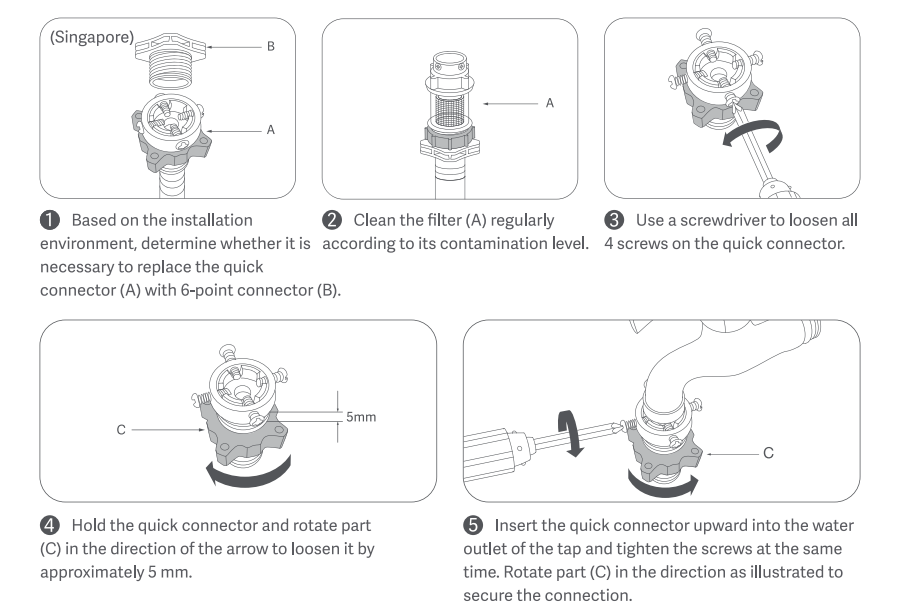

1. Based on the installation environment, determine whether it is necessary to replace the quick connector (A) with 6-point connector (B);
2. Clean the filter (A) regularly according to its contamination level;
3. Use a screwdriver to loosen 4 screws on the quick connector;
4. Hold the quick connector and rotate part (C) in the direction of the arrow to loosen it by approximately 5 mm;
5. Insert the quick connector upward into the water outlet of the tap and tighten the screws at the same time. Rotate part (C) in the direction as illustrated to secure the connection.
Note:
1. Keep the Water Inlet Hose in a natural state, do not bend or tighten it;
2. The Water Inlet Hose of the Mijia Front Load Washer Dryer 10.5kg can be lengthened. Please contact the after-sales service center for details. There is no clear regulation on the maximum extension of the Water Inlet Hose of the device. It can be used as long as it meets the water pressure requirement of 0.05-0.8MPa.
To connect the Water Inlet Hose of the Mijia Front Load Washer Dryer 10.5kg, please refer to the following steps:
1. Based on the installation environment, determine whether it is necessary to replace the quick connector (A) with 6-point connector (B);
2. Clean the filter (A) regularly according to its contamination level;
3. Use a screwdriver to loosen 4 screws on the quick connector;
4. Hold the quick connector and rotate part (C) in the direction of the arrow to loosen it by approximately 5 mm;
5. Insert the quick connector upward into the water outlet of the tap and tighten the screws at the same time. Rotate part (C) in the direction as illustrated to secure the connection.
Note:
1. Keep the Water Inlet Hose in a natural state, do not bend or tighten it;
2. The Water Inlet Hose of the Mijia Front Load Washer Dryer 10.5kg can be lengthened. Please contact the after-sales service center for details. There is no clear regulation on the maximum extension of the Water Inlet Hose of the device. It can be used as long as it meets the water pressure requirement of 0.05-0.8MPa.
