What are the icons on the dashboard of the Xiaomi Watch S4?
Press the power button (lower button) on the Xiaomi Watch S4 to enter the dashboard.

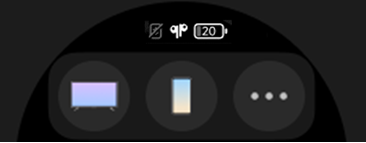

The icon description on the top row of the dashboard from left to right is listed below:
1. Bluetooth connection status: The icon will be gray if the watch is not connected to the phone. The icon will stay solid when the watch is connected;
2. Earphone connection status: This icon is displayed when the watch is connected to earphones, and there is no icon when the earphones are not connected;
3. Current battery level of the watch: The charging icon is displayed when charging. When not charging, 0-10% is displayed in red, 11%-20% is displayed in orange and 21%-100% is displayed in white.
The icon description on the second row of the dashboard is listed below:
Xiaomi Smart Hub: You need to connect a mobile phone that supports Xiaomi HyperOS 2, update the Mi Fitness APP to the latest version, and update the Mi Home/Xiaomi Home APP to version 10.0 and above. The other device must support related functions.
The icon description on the top row of the dashboard from left to right is listed below:
1. Bluetooth connection status: The icon will be gray if the watch is not connected to the phone. The icon will stay solid when the watch is connected;
2. Earphone connection status: This icon is displayed when the watch is connected to earphones, and there is no icon when the earphones are not connected;
3. Current battery level of the watch: The charging icon is displayed when charging. When not charging, 0-10% is displayed in red, 11%-20% is displayed in orange and 21%-100% is displayed in white.
The icon description on the second row of the dashboard is listed below:
Xiaomi Smart Hub: You need to connect a mobile phone that supports Xiaomi HyperOS 2, update the Mi Fitness APP to the latest version, and update the Mi Home/Xiaomi Home APP to version 10.0 and above. The other device must support related functions.
