What is the appearance of the Xiaomi Mesh System BE3600 Pro?

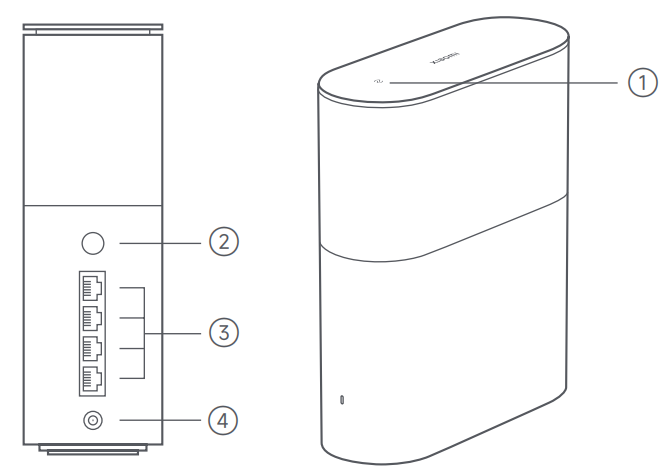

The appearance and accessories of the Xiaomi Mesh System BE3600 Pro are as follows:
1. NFC area: Simply touch the NFC area of your phone to the top of the router to quickly connect to Wi-Fi. To use this feature, enable the NFC function on your Android phone, and keep your phone unlocked;
2. Mesh/Reset button: Press the button to have Mesh networking with routers that support the Xiaomi Mesh function. Press and hold the button for 5 seconds to restore the router to its factory settings;
3. Network port: 4 WAN/LAN auto-sensing ports (1×2.5Gbps+3×1Gbps);
4. Power port: Connect the power adapter to the router.
Note:
Illustrations of the product and accessories are for reference purposes only. Actual product and functions can vary due to product enhancements.
1. NFC area: Simply touch the NFC area of your phone to the top of the router to quickly connect to Wi-Fi. To use this feature, enable the NFC function on your Android phone, and keep your phone unlocked;
2. Mesh/Reset button: Press the button to have Mesh networking with routers that support the Xiaomi Mesh function. Press and hold the button for 5 seconds to restore the router to its factory settings;
3. Network port: 4 WAN/LAN auto-sensing ports (1×2.5Gbps+3×1Gbps);
4. Power port: Connect the power adapter to the router.
Note:
Illustrations of the product and accessories are for reference purposes only. Actual product and functions can vary due to product enhancements.
