How to install the Xiaomi Outdoor Camera CW700S on the wall?
To install the Xiaomi Outdoor Camera CW700S on the wall, please refer to the following steps:

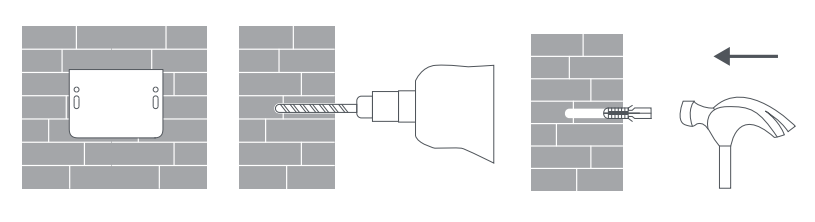

1. Paste the mounting template sticker where the camera needs to be installed, and drill four holes in the wall with a drilling tool according to the locating holes on the sticker. The hole is approx. 6 mm in diameter and approx. 40 mm in depth;
2. Insert four plastic wall plugs into the holes in the wall;

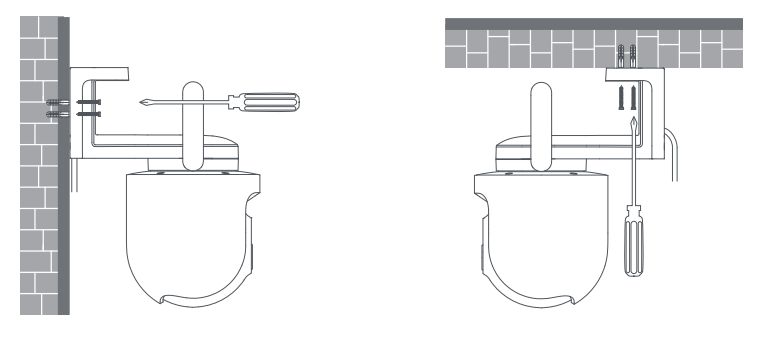

3. Place the mount against the wall, insert screws into the holes, and drill them into the plastic wall plugs on the wall;

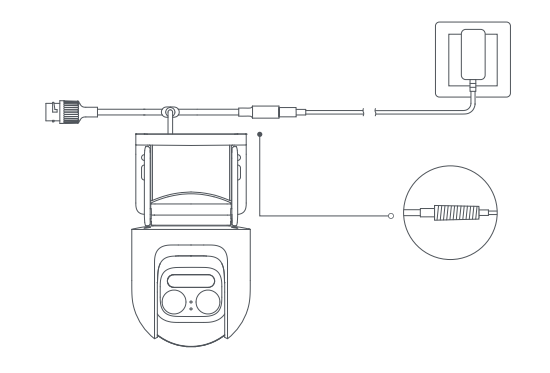

4. Wrap the power cable port with the waterproof tape after the camera is fixed to ensure waterproof performance;

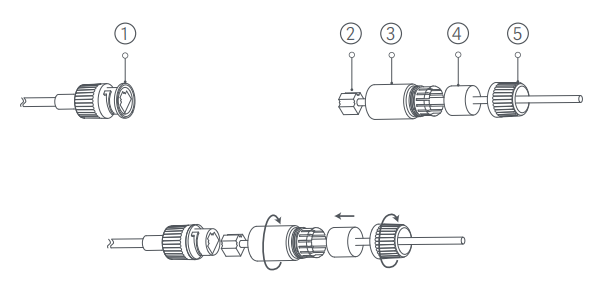

5. Place the sealing ring on the camera’s network cable port. Thread the waterproof rear cover, stopper, and waterproof sleeve over the network cable in order, then plug the network cable into the port. Screw together the waterproof sleeve and stopper, then screw together the waterproof rear cover and waterproof sleeve.
Note:
1. The wall must be able to support at least three times the total weight of the camera;
2. The camera must be firmly fixed to the wall according to the installation instructions in the user manual to prevent accidental injury;
3. Do not install near an air conditioner outdoor unit, range hood outlet, gas water heater outlet, or other heat sources.
1. Paste the mounting template sticker where the camera needs to be installed, and drill four holes in the wall with a drilling tool according to the locating holes on the sticker. The hole is approx. 6 mm in diameter and approx. 40 mm in depth;
2. Insert four plastic wall plugs into the holes in the wall;
3. Place the mount against the wall, insert screws into the holes, and drill them into the plastic wall plugs on the wall;
4. Wrap the power cable port with the waterproof tape after the camera is fixed to ensure waterproof performance;
5. Place the sealing ring on the camera’s network cable port. Thread the waterproof rear cover, stopper, and waterproof sleeve over the network cable in order, then plug the network cable into the port. Screw together the waterproof sleeve and stopper, then screw together the waterproof rear cover and waterproof sleeve.
Note:
1. The wall must be able to support at least three times the total weight of the camera;
2. The camera must be firmly fixed to the wall according to the installation instructions in the user manual to prevent accidental injury;
3. Do not install near an air conditioner outdoor unit, range hood outlet, gas water heater outlet, or other heat sources.
