Washing machine installation service

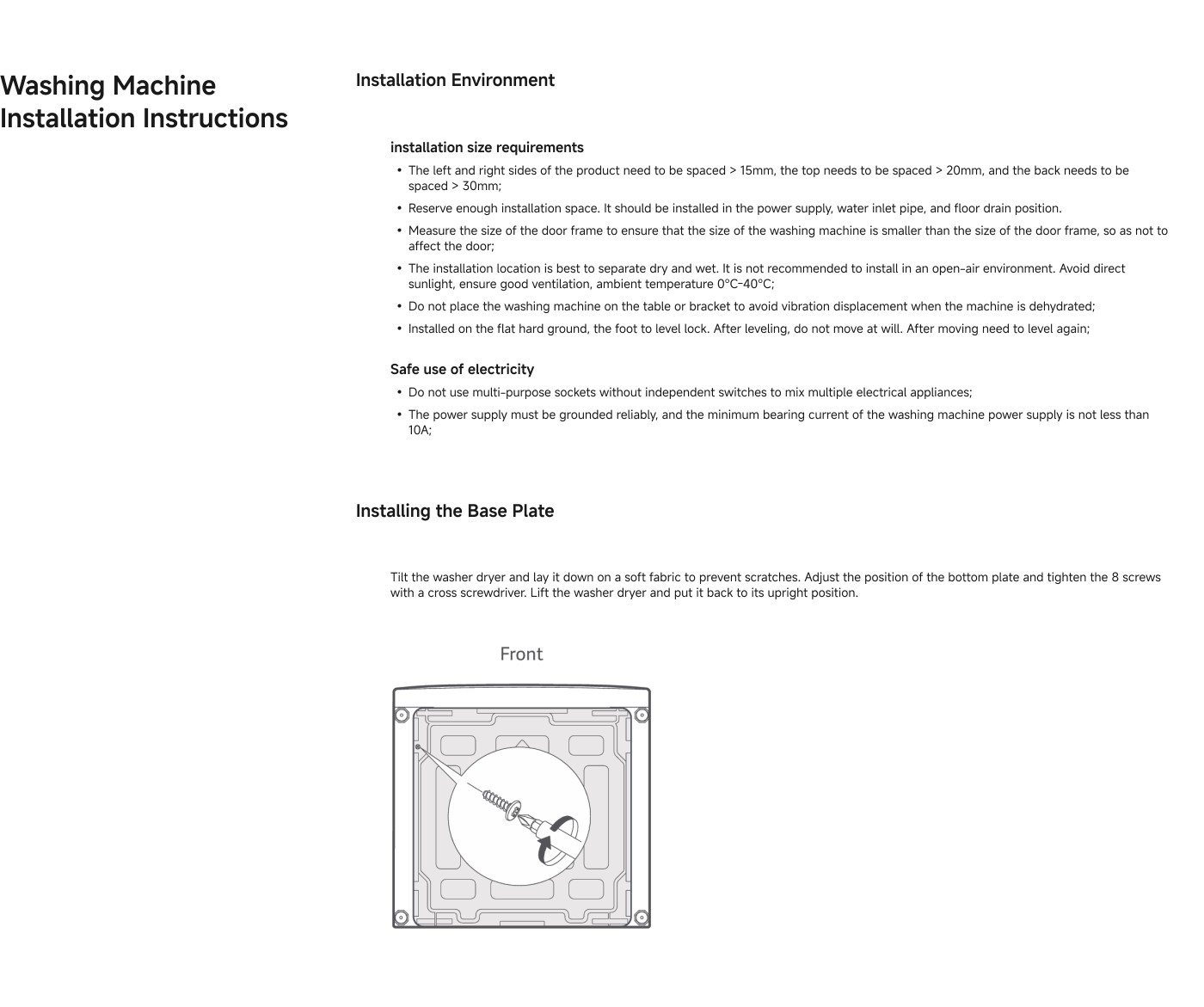

Washing machine installation instructions include requirements for spacing around the unit: at least 15mm on the sides, 20mm on top, and 30mm at the back. Ensure enough space for utilities, check door frame size, and maintain a dry installation area away from direct sunlight. The machine should be on a flat surface, leveled, and not moved after installation. For electrical safety, avoid using multi-purpose sockets and ensure proper grounding with a minimum current of 10A.

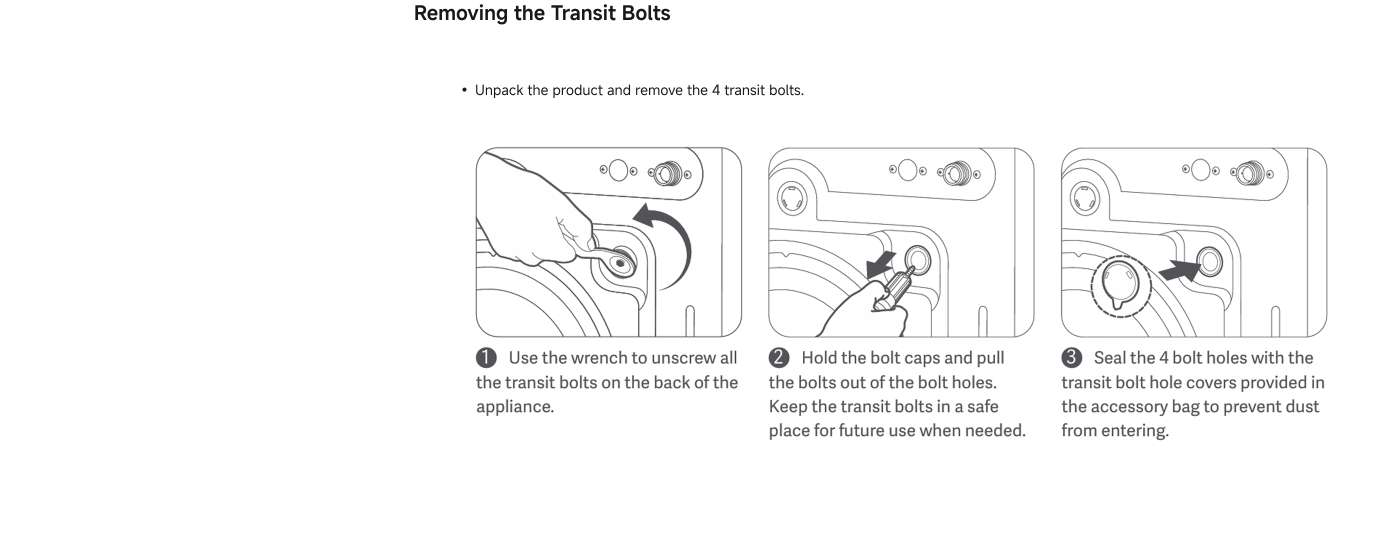

Instructions for removing transit bolts: 1. Unpack the product and remove the 4 transit bolts. 2. Use the wrench to unscrew all the transit bolts on the back of the appliance. 3. Hold the bolt caps and pull the bolts out of the bolt holes. Keep the transit bolts in a safe place for future use when needed. 4. Seal the 4 bolt holes with the transit bolt hole covers provided in the accessory bag to prevent dust from entering.

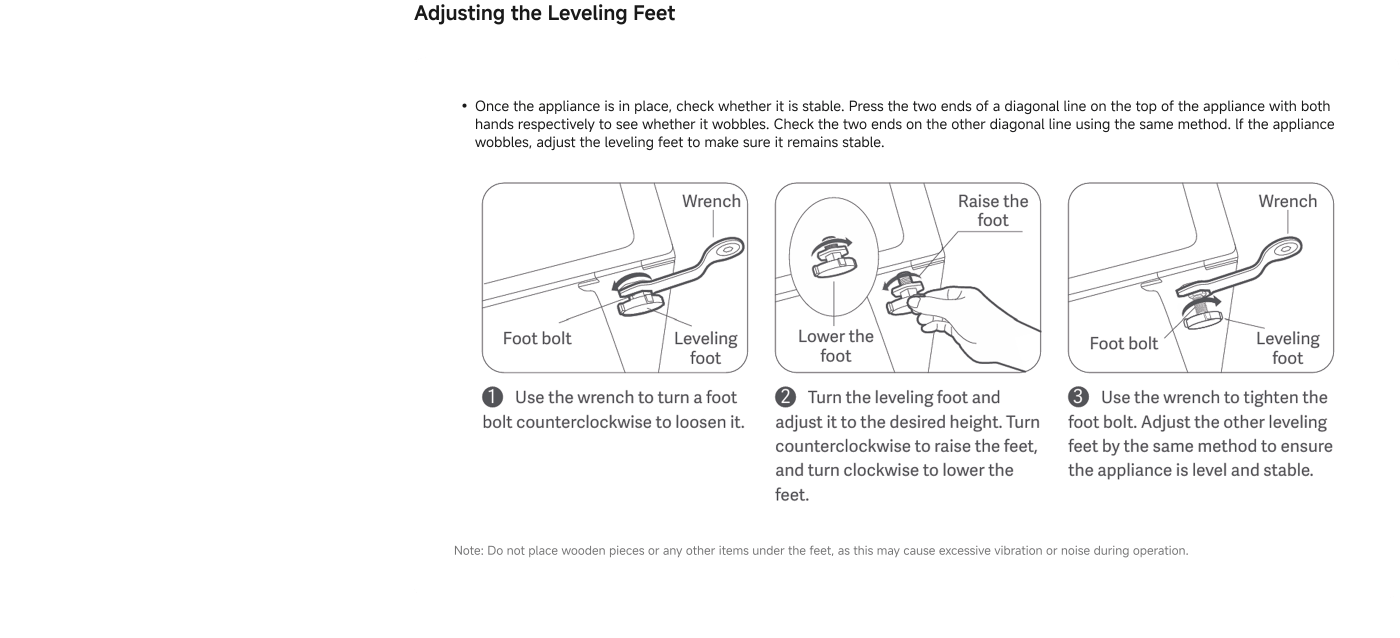

Instructions for adjusting leveling feet of an appliance: 1. **Check Stability**: Ensure the appliance is stable by pressing the ends of both diagonal lines on top. If it wobbles, adjust the leveling feet. 2. **Loosen Foot Bolt**: Use a wrench to turn the foot bolt counterclockwise to loosen it. 3. **Adjust Height**: Turn the leveling foot to raise or lower it. Counterclockwise raises the foot, clockwise lowers it. 4. **Tighten Bolt**: After adjustments, use the wrench to tighten the foot bolt. Repeat for other leveling feet to ensure the appliance is level. **Note**: Avoid placing wooden pieces or items under the feet to prevent excessive vibration or noise.

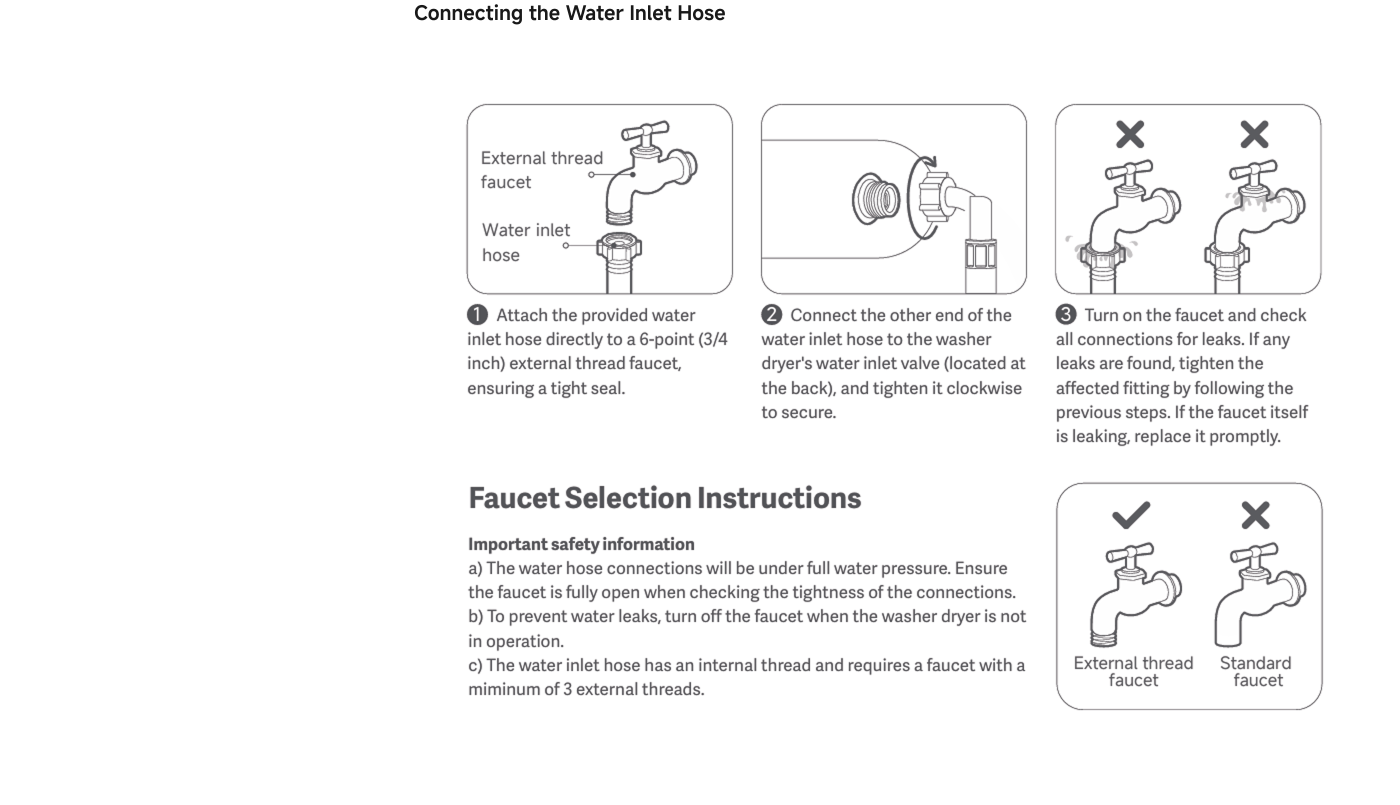

Instructions for connecting a water inlet hose include: 1. Attach the hose to a 6-point (3/4 inch) external thread faucet, ensuring a tight seal. 2. Connect the other end to the washer’s water inlet valve at the back and tighten it clockwise. 3. Turn on the faucet and check for leaks; tighten any loose fittings as needed. Important safety notes highlight that the water hose connections will be under full pressure, and the faucet should be closed when checking for tightness. The inlet hose requires a faucet with at least 3 external threads.

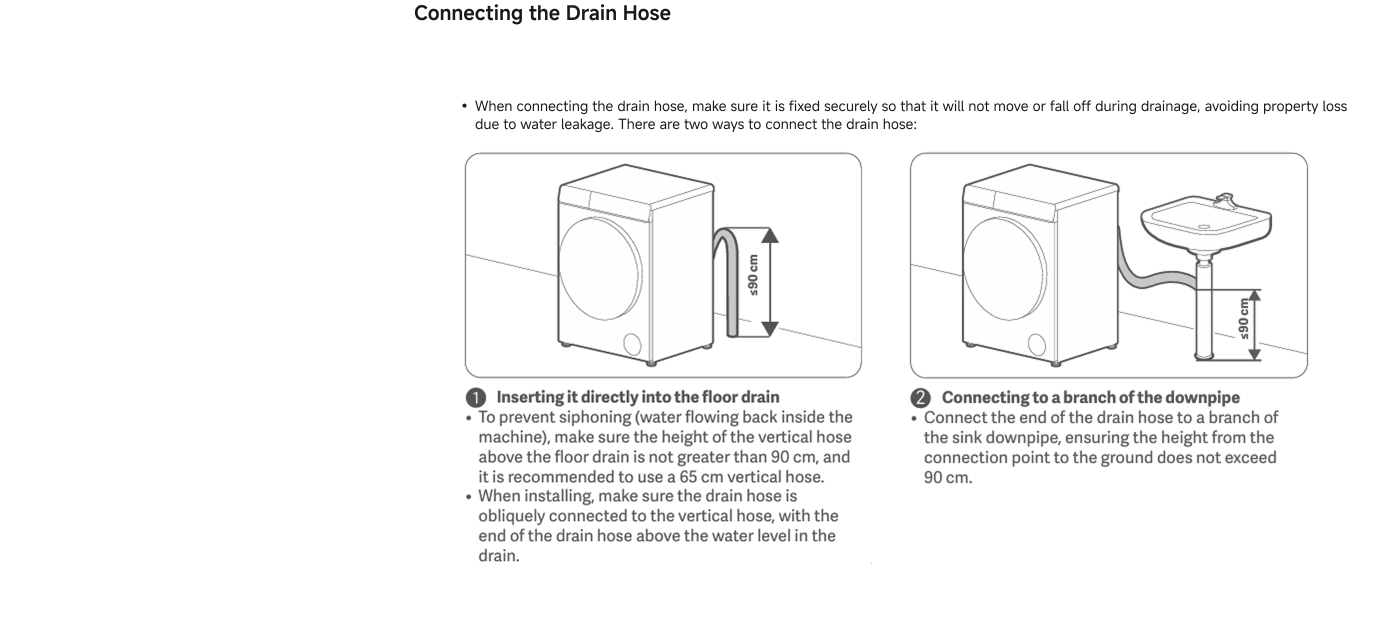

Instructions for connecting a drain hose are provided, detailing two methods: 1. **Inserting directly into the floor drain**: Ensure the hose height above the floor drain does not exceed 90 cm. It’s recommended to use a 65 cm vertical hose. The hose should connect obliquely to avoid siphoning. 2. **Connecting to a branch of the downpipe**: Attach the drain hose to a branch of the sink downpipe, ensuring the height from the connection point to the ground does not exceed 90 cm.
Installation Service Guarantee highlights three key features: 1. **Professional Service**: Xiaomi’s official authorized service provider offers on-site installation. 2. **Price Transparency**: Pricing is clear to avoid hidden charges. 3. **Convenient Appointment**: Customers will be contacted for scheduling the installation after opting for the service.
Standard Installation Service Content **Product Installation and User Guide** Complete the installation of new products and guide customers to understand the basic functions of the products. **Installation Warranty Period:** Warranty of the installation shall be valid within 90 days from the date of completion of the installation. This warranty shall cover any defects in the installation.

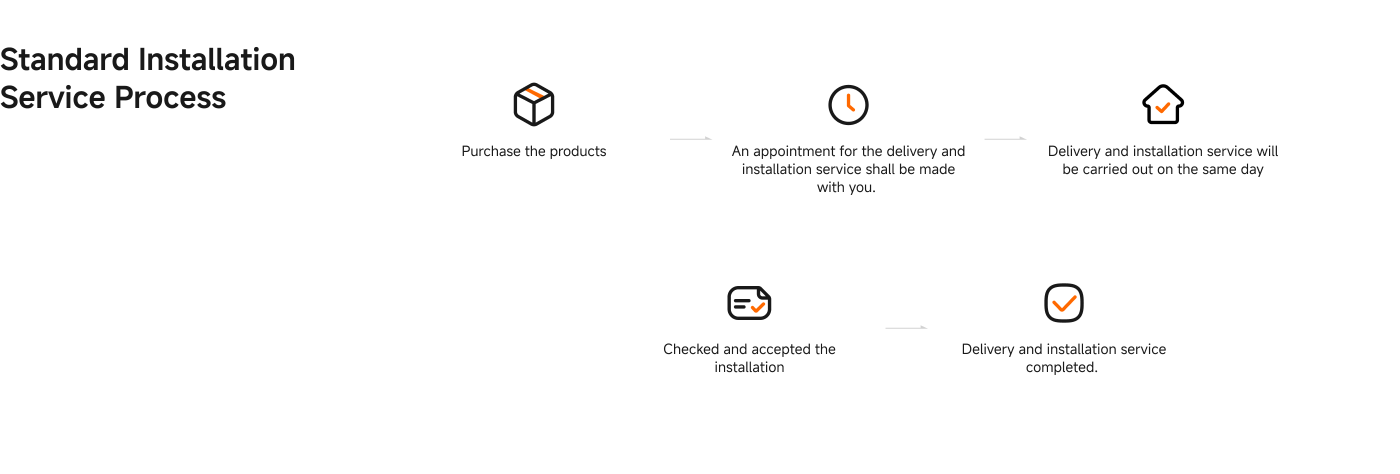

Standard Installation Service Process: 1. Purchasing the products 2. An appointment for the delivery and installation service shall be made with you. 3. Delivery and installation service will be carried out on the same day. 4. Checked and accepted the installation. 5. Delivery and installation service completed.

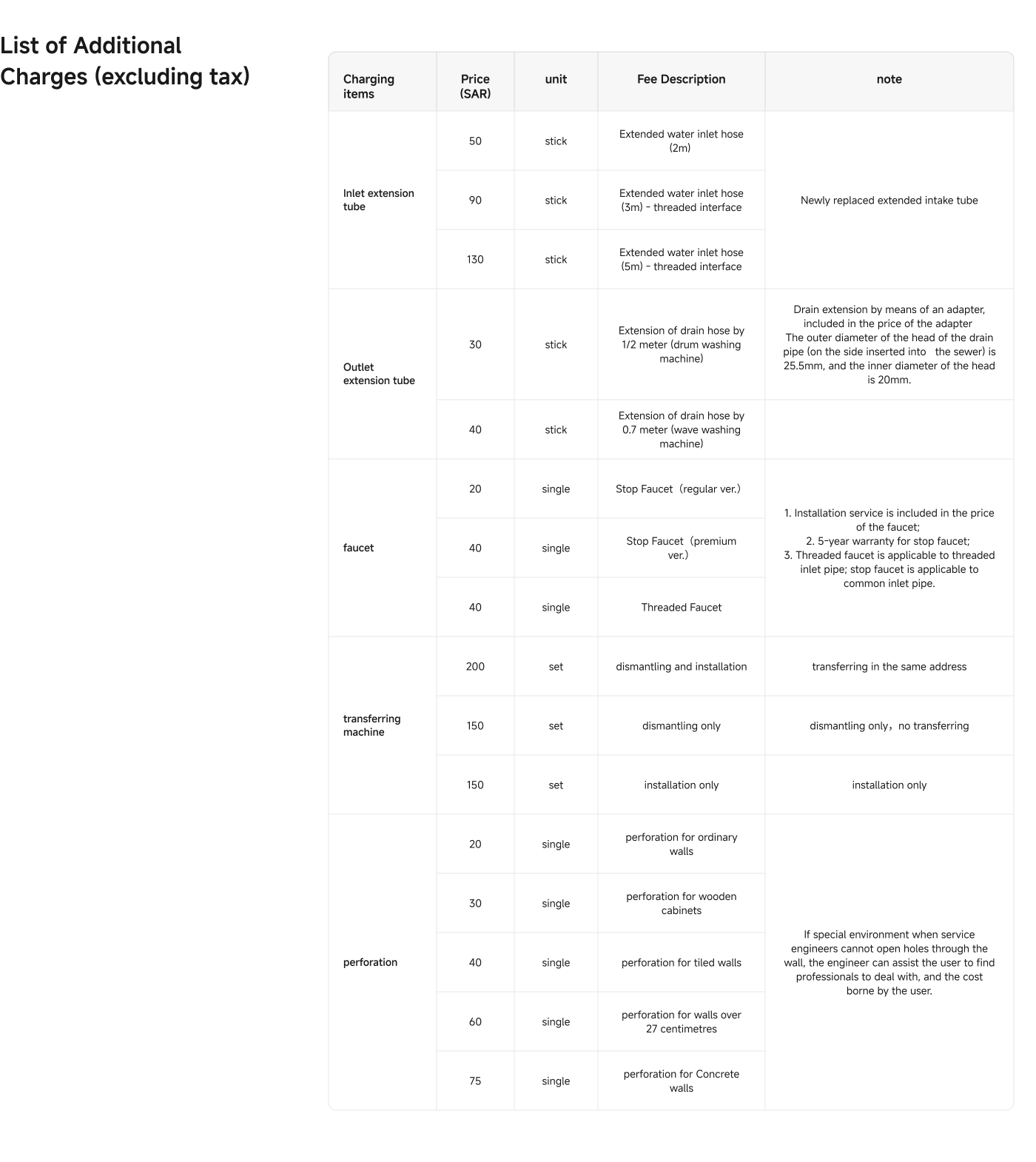

This document lists additional charges (excluding tax) for various plumbing items and services. Key details include: - **Inlet Extension Tube**: Prices range from SAR 50 to SAR 130 depending on the length. - **Outlet Extension Tube**: Charges are SAR 30 for 1/2 meter and SAR 40 for 0.7 meter. - **Faucets**: Prices vary from SAR 20 to SAR 40, with installation included for certain types. - **Transferring Machine**: Charges for dismantling and installation start at SAR 150. - **Perforation Services**: Costs range from SAR 20 for ordinary walls to SAR 75 for concrete walls. Each item includes specific notes about installation and warranty terms.
Service appointment information, including the hotline phone number and email address. The hotline number is 80012020202, and the email address is service.sa@support.mi.com.
This Product Station Content and Installation Service is subject to the Terms and Conditions. Xiaomi is not responsible for product failures due to unauthorized installations. Scenarios affecting service include insufficient site preparation, defective connections, customer access refusal, and notification issues. Xiaomi's liability is limited to direct damage, and they are not liable for consequential damages, weather delays, or unforeseen circumstances.
