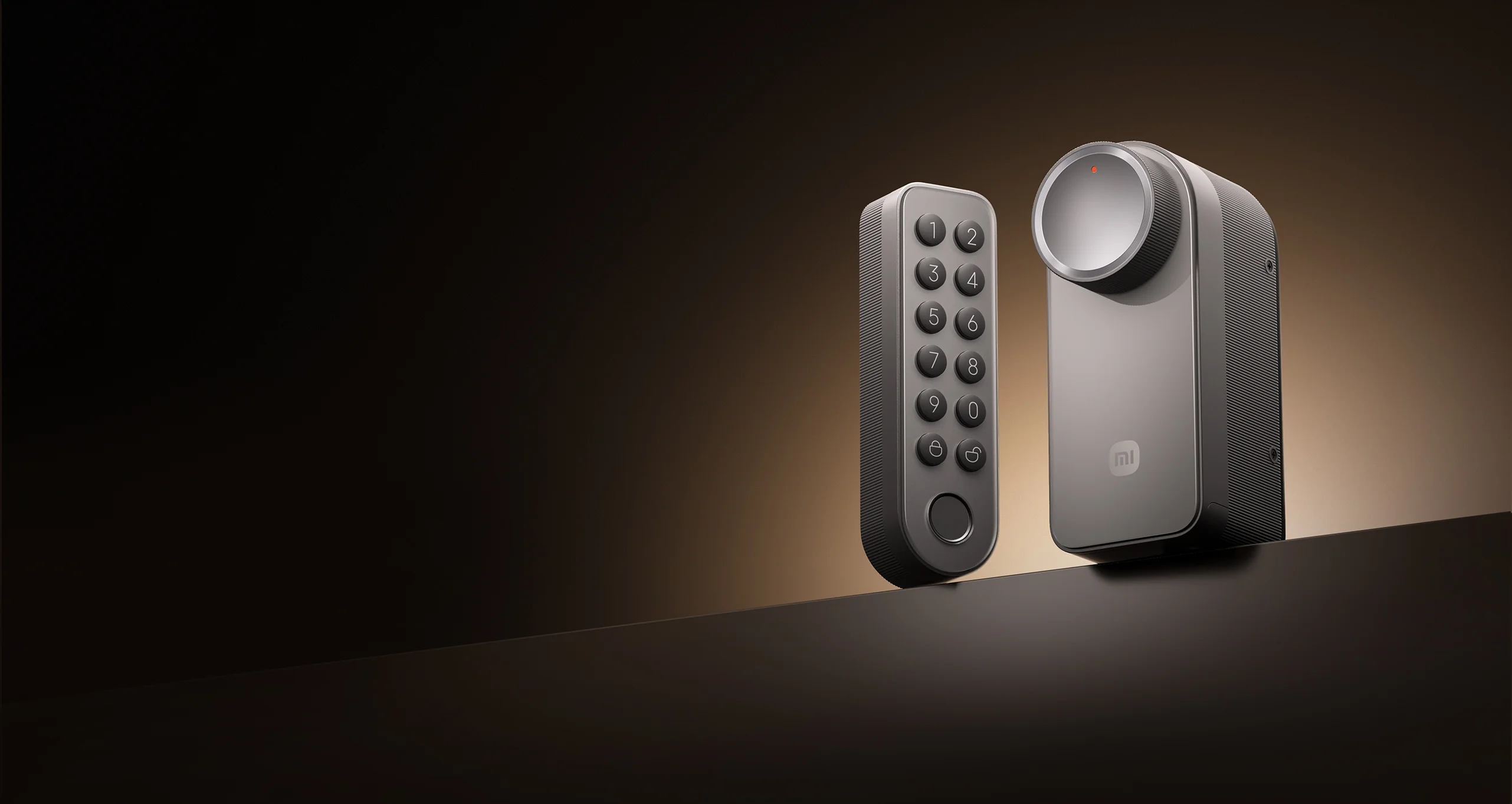

Supports Xiaomi and Matter ecosystems for an all-new keyless unlocking experience
Quick unlocking with just your fingerprint
Tap in the app for convenient, safe remote control
Full-stack security with multiple system protections
Multi-ecosystem mode
Wi-Fi connection
Auto-lock
*Requires a door sensor.

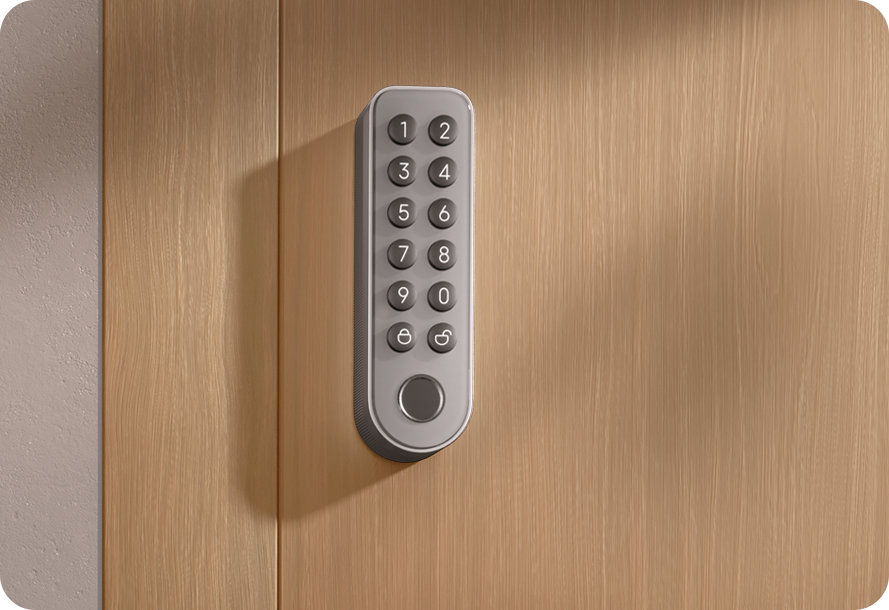

Multiple unlocking methods
Quick installation, no drilling required
Compatible with the original lock structure for straightforward, damage-free installation
No modifications and no drilling required for easy installation
Multiple unlocking methods
Various flexible options for your convenience
Suitable for different scenarios and groups of people-even without a physical key, unlocking the door is secure and hassle-free.
*Fingerprint unlocking, permanent password unlocking, and periodic/one-time password unlocking are only supported as a set.
*Voice control requires connection to a third-party ecosystem platform, such as Alexa, Google or Apple, and the voice control feature must be enabled. Voice unlocking via Alexa/Google Assistant requires user-set PIN code input. Unlocking via Apple Siri is only available after phone unlock and successful voice recognition. Actual use may vary depending on assistant settings and device compatibility.
Wi-Fi connection

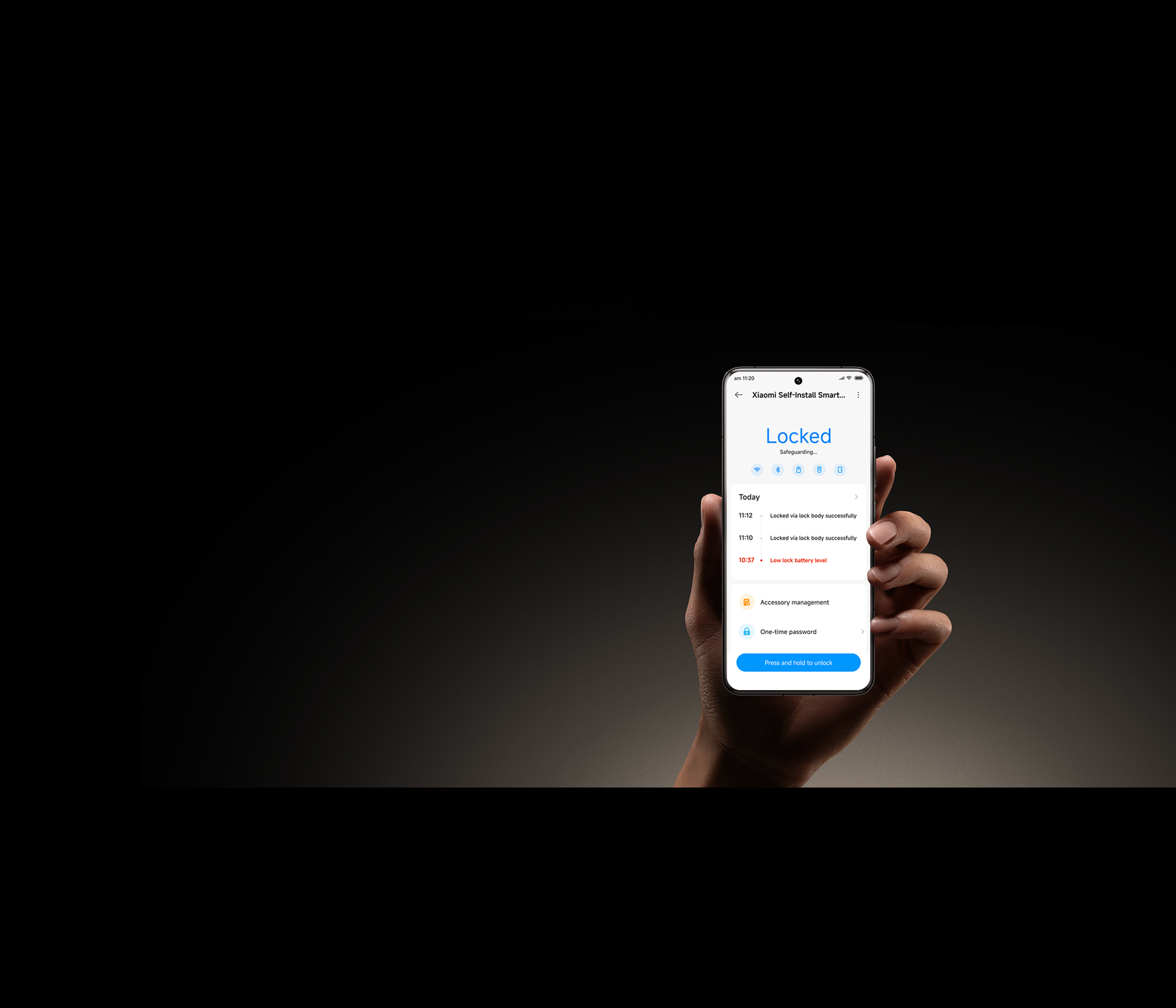

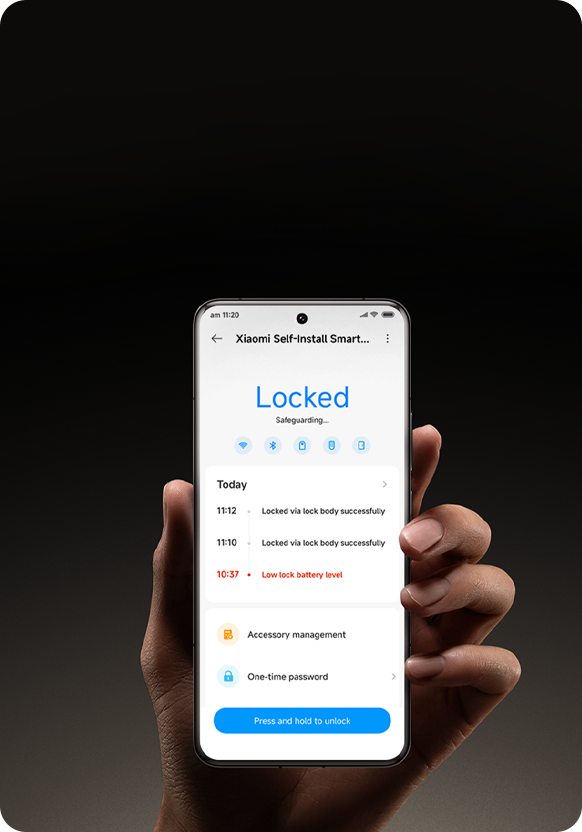

Seamless connection with Xiaomi Home for one-stop management
Supports simultaneous connection to Xiaomi Home via Wi-Fi and Bluetooth, allowing you to check lock status, view logs, receive alert notifications and get family arrival reminders so you can stay in control in real-time.
Family member unlock alerts
Door left open (requires door sensor)
Duress unlock alerts
Remote monitoring of door lock status
Remote monitoring of security alerts
Multiple failed unlock attempts
*Door left open reminders require a door sensor.
*The keypad is required to receive family unlock alerts, duress unlock alerts and multiple failed attempt alerts. The default limit for failed attempts is 10. This number can be changed in Xiaomi Home. After exceeding the limit, the keypad will lock for 90 seconds, during which it cannot be used.
*If a registered duress fingerprint is used to unlock the door, the app will send you a notification of abnormal unlocking behaviour.

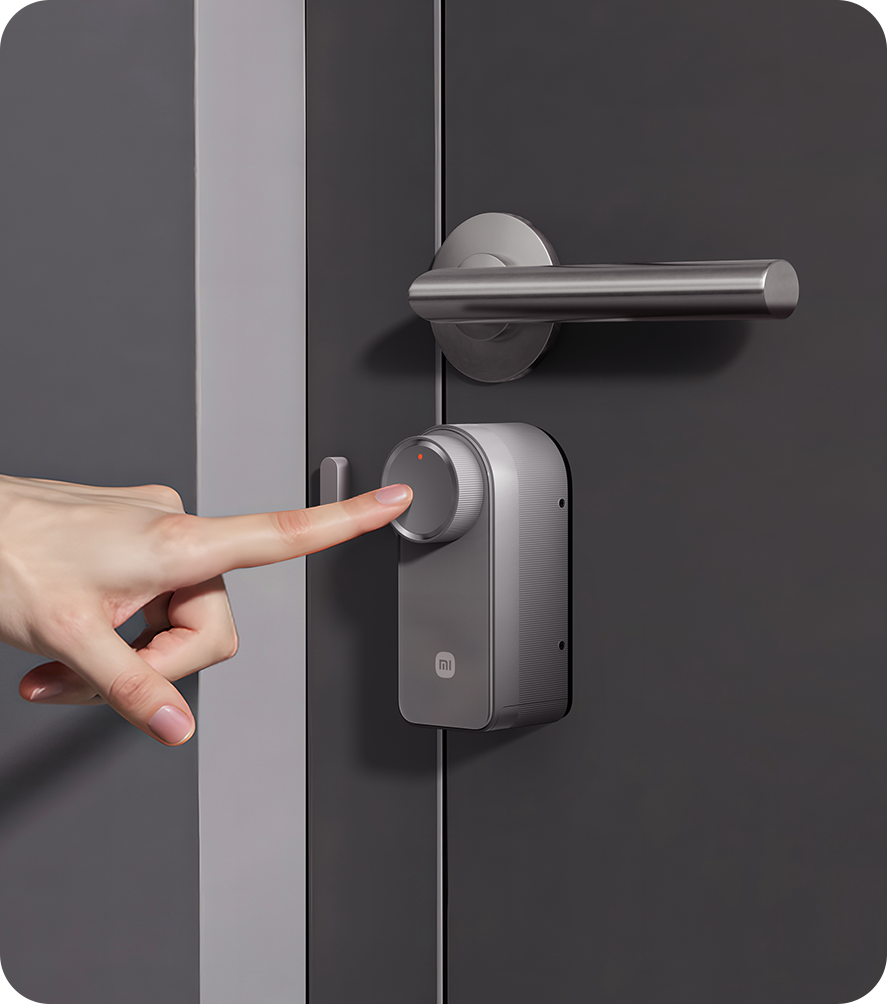

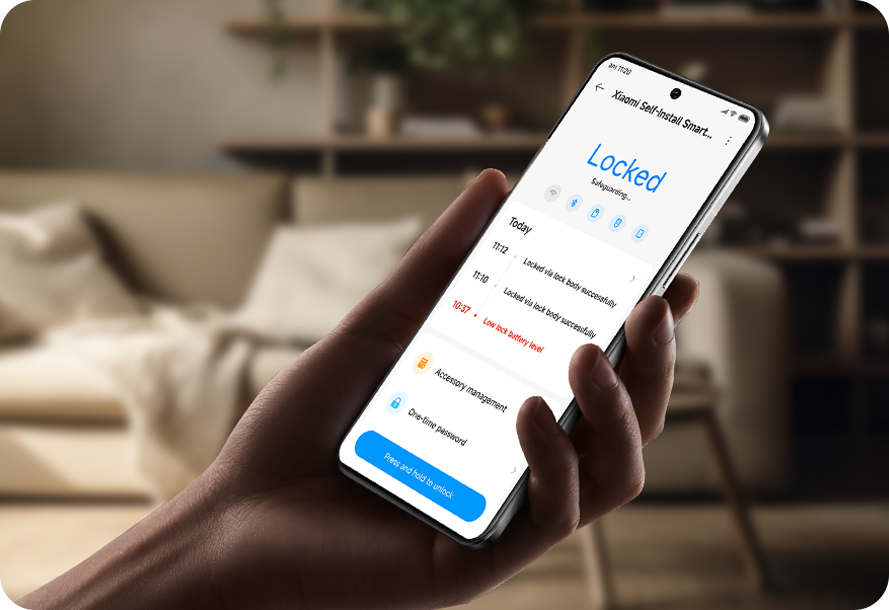

One touch convenient locking and unlocking
Quickly unlock with a tap on the button to save you time when you're heading out.

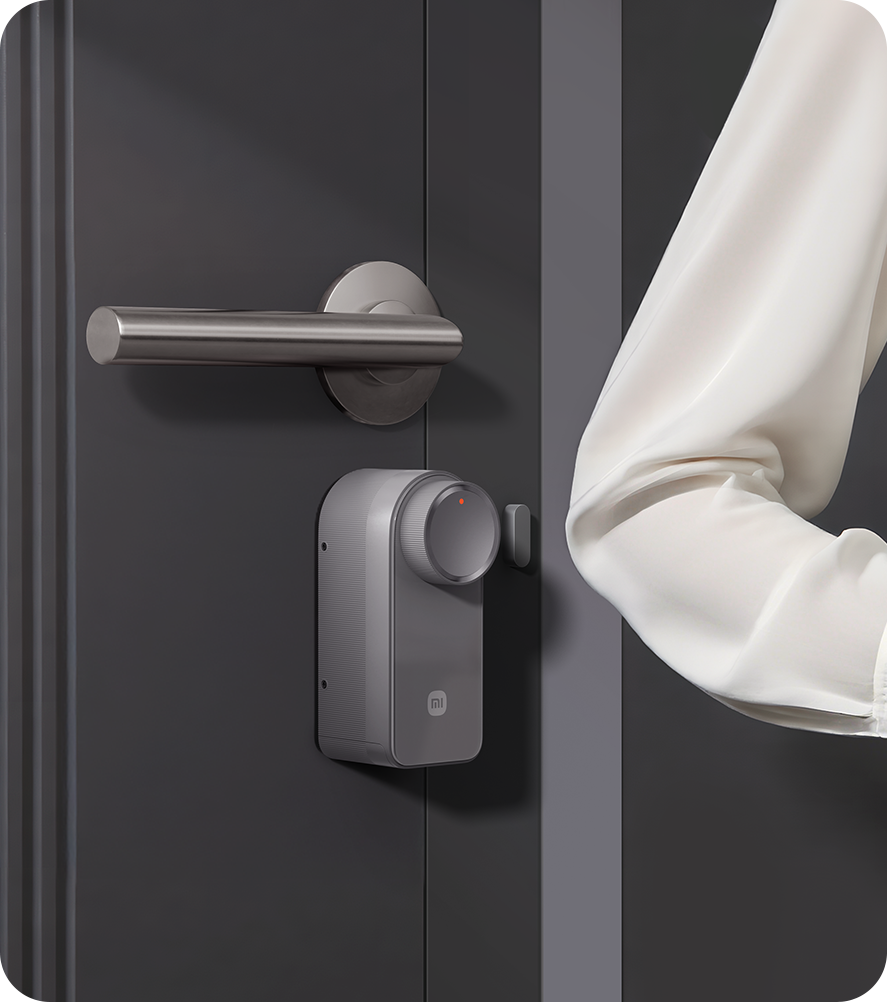

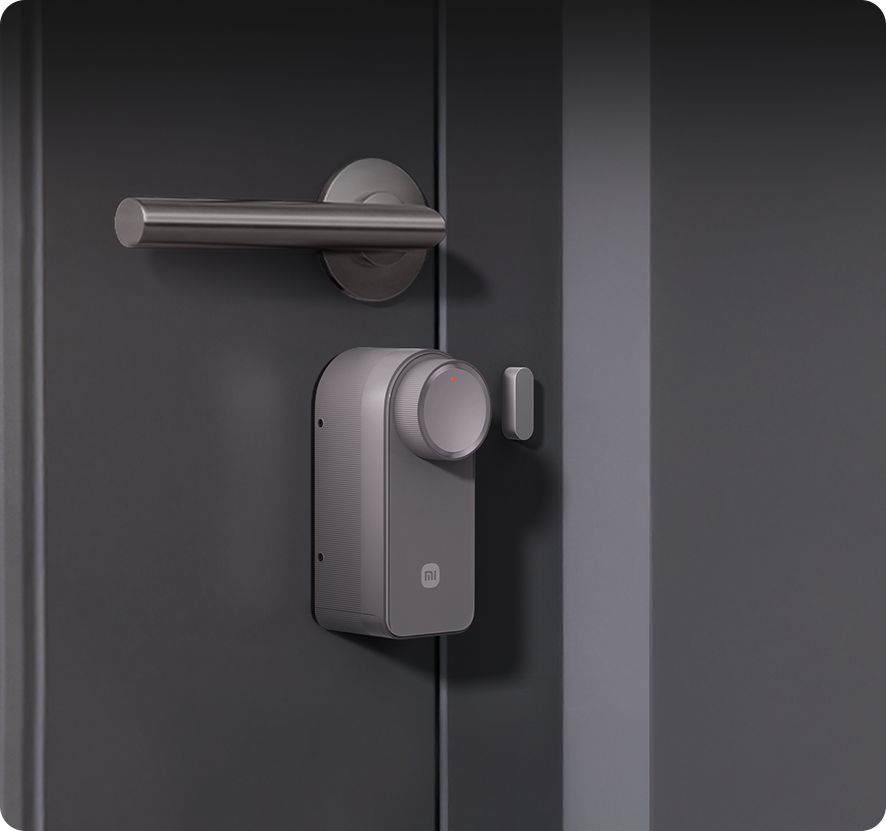

Auto-locks when the door is closed, so you don't have to worry about forgetting to lock up
After the door closes, the lock detects the door sensor and automatically engages after the set delay period, keeping your property secure.
*If the door sensor is not installed and calibrated, the door will auto-lock based on the preset time after unlocking.
*The automatic lock function is disabled by default and must be enabled manually in the app.

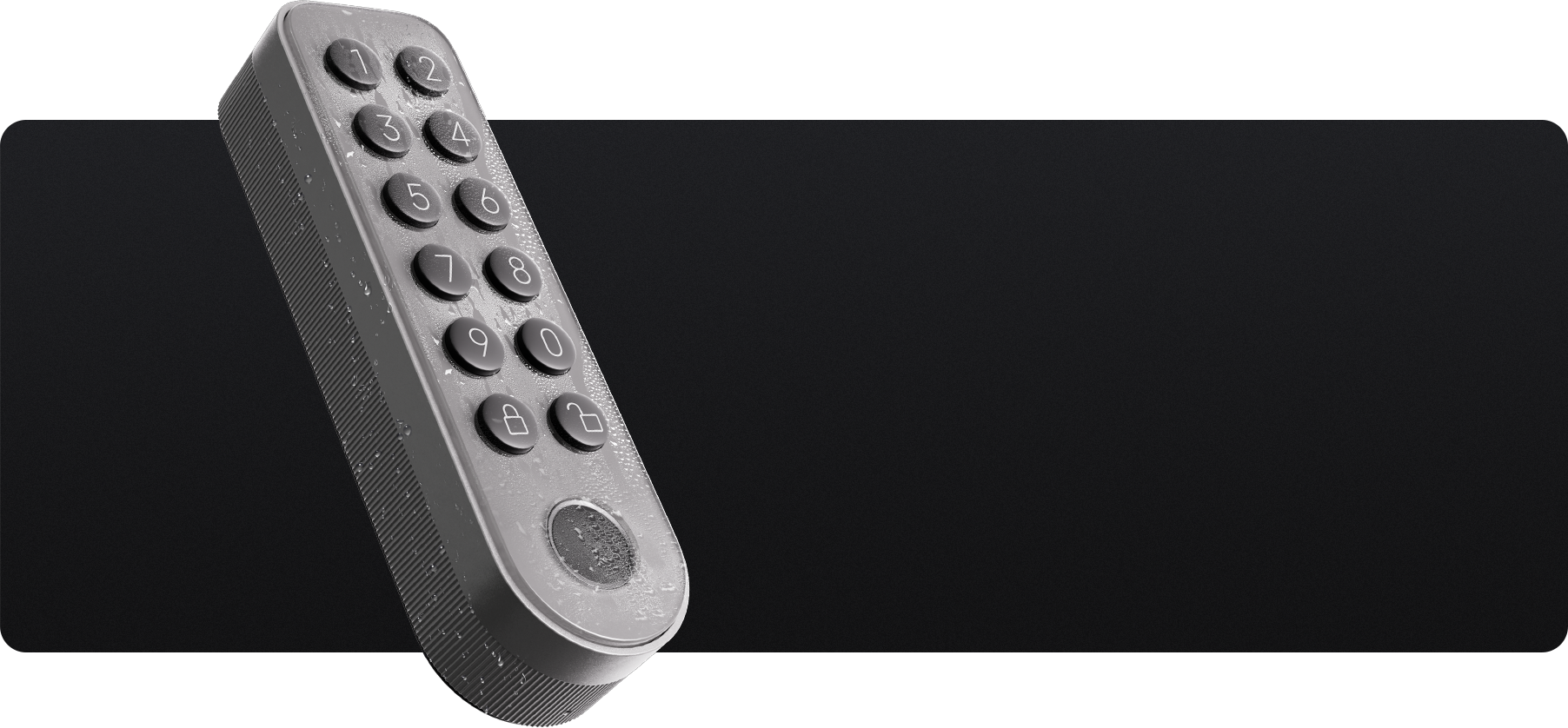

IP65-rated water-resistant keypad can withstand wind and rain
Dustproof for your peace of mind
Semiconductor fingerprint identification
Algorithm-based detection for greater precision and safety
99.3%
identification rate*
Virtual password
Enter arbitrary digits freely for watertight security
Virtual password
Correct password
Virtual password
Keypad anti-tamper alert
Hidden anti-tamper switch for added security
If the keypad is removed, you'll receive an alert on the app, helping you prevent property loss.
*After binding the lock and the keypad, the anti-theft alarm will only trigger once the back cover is removed.
*The product images and models, data, functions, performance, specifications, user interface, and other product information on this page are for reference only and may differ from the actual product. Xiaomi may amend this information. For details, please refer to the actual product.
The Matter protocol breaks ecosystem barriers, achieving seamless cross-platform connection
Compatible with the Matter ecosystem, it allows convenient communication between your smart home devices, unlocking limitless possibilities for a smart lifestyle.
Alexa, close the door.
All right, locking the door.
Apple HomePod (2nd Gen)
Apple HomePod Mini
Apple TV 4K (3rd Gen) Wi-Fi + Ethernet
Apple TV 4K (2nd Gen)
Nest Hub (2nd Gen)
Nest Hub Max
Google Nest Wifi Pro
Echo (4th Gen)
Echo Show 8 (3rd Gen)
Echo Hub
Echo Show 10(3rd Gen)
Echo studio (2nd Gen)
Echo studio (1st Gen)
Eero Max 7
Eero Pro 6E, Pro 6, 6 Plus, 6
PoE 6, and PoE Gateway
*Not affiliated with, sponsored, or endorsed by Apple Inc. A compatible Apple Home app and Siri-enabled device are required. Apple Home and Siri are not available in some languages and countries or regions. Apple, HomeKit, and Siri are trademarks of Apple Inc.
*A compatible Alexa or Google Assistant-enabled device is required. Google Assistant is not available in some languages and countries or regions. Google, Google Home and other related trademarks are trademarks of Google LLC. Alexa is not available in some languages and countries or regions. Amazon, Alexa, and all related trademarks belong to Amazon.com, Inc. Please refer to the respective official websites for more information.
*Matter is developed by the Connectivity Standards Alliance™. This brand, related logos, and marks are trademarks of the Alliance, all rights reserved.
Comprehensive protection inside and out
Full-stack security with multiple system protections

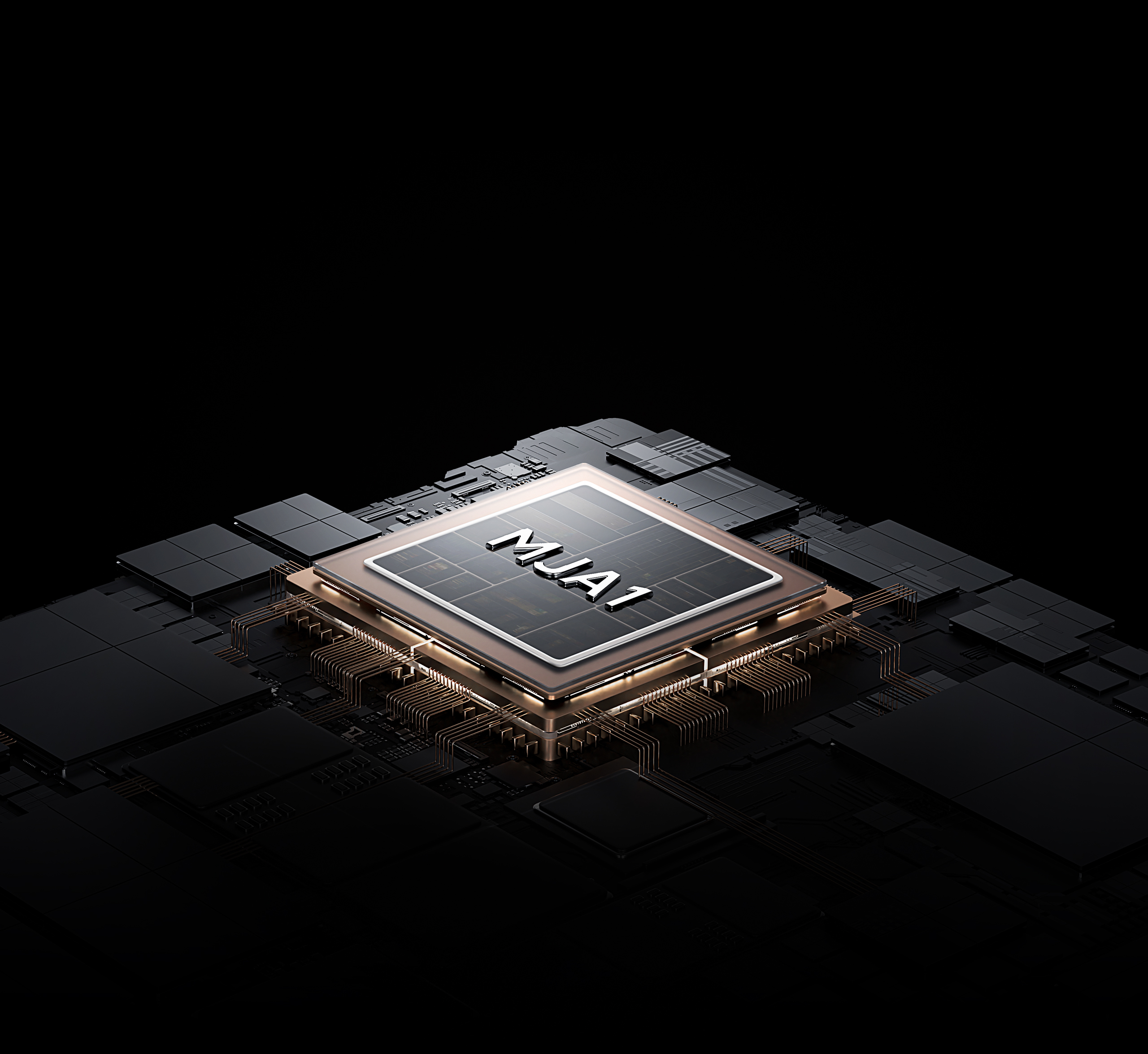

Xiaomi Self-Install Smart Lock is built with security at its core. Equipped with the MJA1 chipset and certified by the official EU cybersecurity authority, it offers end-to-end software and hardware protection, ensuring a safe, worry-free digital environment for users.
European Cybersecurity Standard EN18031 Certification (NB Certificate No.: RED 1040)

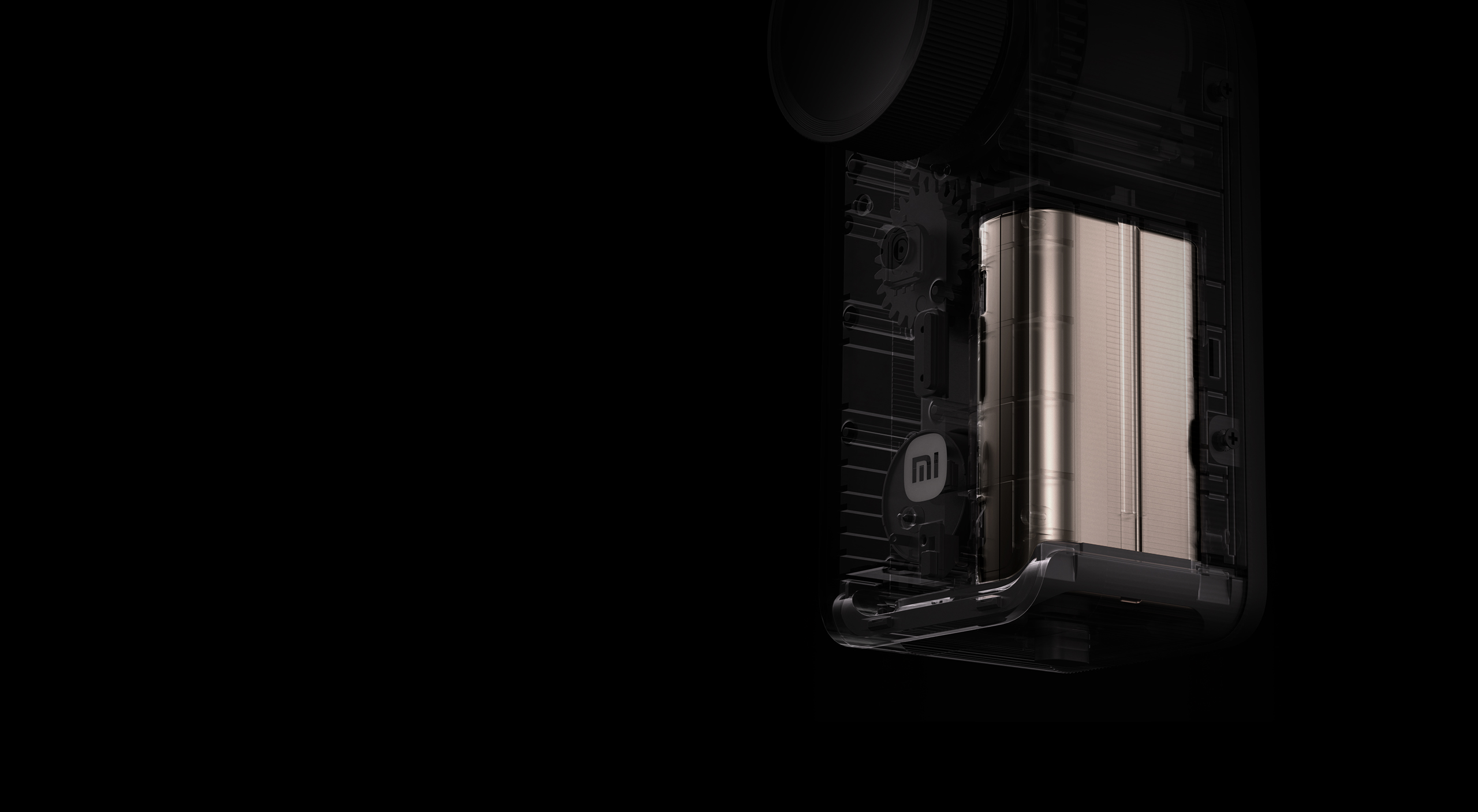

6-month-long battery life
Always on guard for your peace of mind
Powered by a
2450mAh
lithium battery
The 6-month battery life is based on 8 keypad lock/unlock operations per day in standard power consumption mode. Actual duration may vary depending on environmental factors. Please refer to actual usage conditions.
Comprehensive professional quality control testing* for greater peace of mind and reliability
Locking and unlocking tests*
48h*
Surface salt spray test
48h*
Surface cold-resistance test
-10 to 55℃*
Temperature tolerance test
*The product images and models, data, functions, performance, specifications, user interface, and other product information on this page are for reference only and may differ from the actual product. Xiaomi may amend this information. For details, please refer to the actual product.

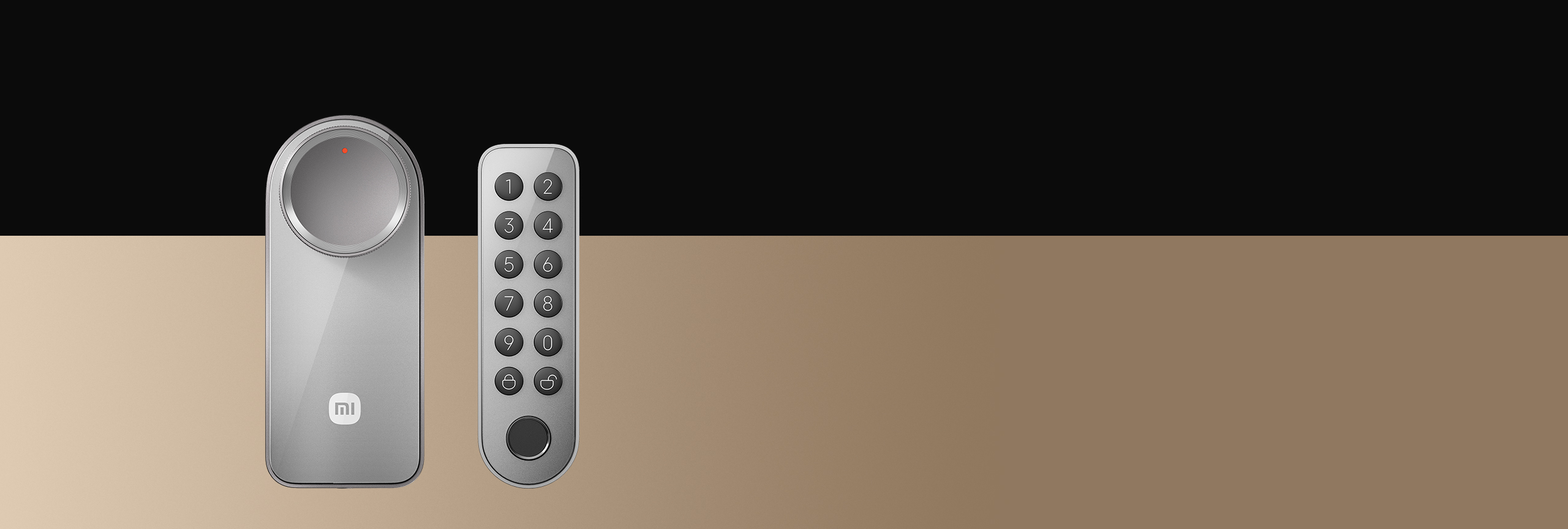

Feature comparison
Fingerprint unlock
Password unlock
Virtual password
Duress alarm alert
Remote unlock via app
Bluetooth unlock via app
Check if your lock cylinder is compatible
Euro cruciform lock
Euro profile lock cylinder
Scandinavian profile lock cylinder
Swiss lock cylinder
UK mortise sash lock
Euro thumbturn lock cylinder
UK oval lock cylinder
ASSA 2000
Installation requirements

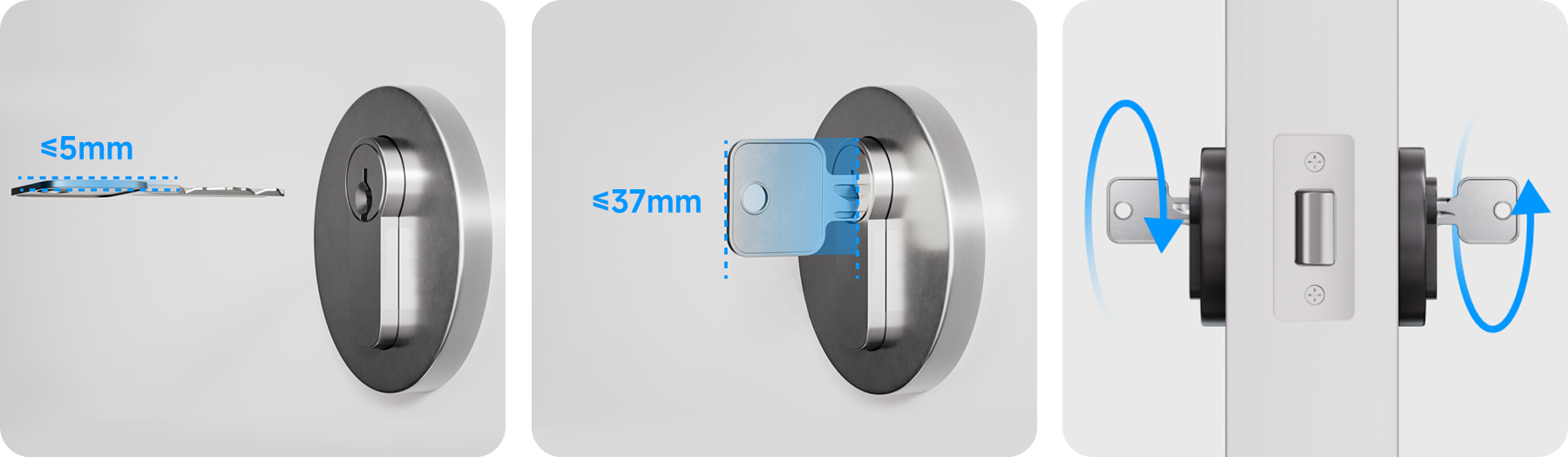

Key installation
Key thickness ≤5mm
After inserting the key blade into the lock cylinder, the remaining key blade length is ≤37mm
The lock cylinder must include an emergency function, allowing the door to be unlocked from the outside with a key even when another key is inserted on the inside.
Door lock knob installation
≥35mm inward-opening door locks
≥50mm outward-opening door locks
If a suitable lock cylinder accessory cannot be found, please replace the lock cylinder
≥35mm is suitable for inward-opening door locks
≥50mm is suitable for outward-opening door locks
Installation method
Key installation
Lock cylinder projection height ≥3mm
Lock cylinder projection height ＜3mm
Screw installation
Double-sided tape installation
Insert the key into the lock cylinder
Turn the door lock knob to align the key and secure the lock
Use a screwdriver to tighten the four screws into the screw holes on both sides of the door lock
Door lock knob installation
Use an L-shaped Allen key to remove the knob
Lock cylinder projection height ≥3mm
Lock cylinder projection height ＜3mm
Install the lock knob accessory
Choose a proper lock cylinder accessory for mounting based on the lock cylinder brand and its shaft (cross-section shape). Rotate the accessory after mounting to ensure it can drive the shaft to rotate.
Screw installation
Double-sided tape installation
Turn the door lock knob to align the knob and secure the lock
Use a screwdriver to tighten the four screws into the screw holes on both sides of the door lock
Notes:
*Product images, model numbers, data, features, performance, specifications, user interface and other product information on this page are for reference only. Xiaomi may make improvements to the above content. Please refer to the actual product and its usage for details.
*Unless otherwise specified, all other data on this page comes from internal laboratory tests. Actual usage may vary due to different external conditions. Please refer to the actual experience.
*The lithium battery lasts for 6 months based on standard usage of 10 lock/unlock cycles per day at 25°C. Actual battery life may vary depending on usage conditions. Battery performance decreases in low temperatures, resulting in a shorter battery life. Please refer to actual usage.
*To view the smart lock's logs remotely and receive abnormal alerts, call notifications, low battery reminders and so on, ensure the lock is connected to Wi-Fi or that your phone maintains a Bluetooth connection.
*The smart lock's fingerprint recognition supports users aged 7 to 70, covering most people. However, some elderly or young children may experience low recognition rates or failed scans due to underdeveloped or worn fingerprints — a common issue with fingerprint technology.
*The smart lock's fingerprint recognition rate of 99.3% was tested at room temperature (around 26°C) using an in-house algorithm with a database of 1,000 fingerprints, each collected 20 times, totaling 20,000 genuine match attempts. The false rejection rate was 0.7%.
*The 48-hour salt spray test was conducted in a salt solution concentration of (5±0.1)%, at a temperature of (35±2)℃. The spraying cycle was 15 minutes every 45 minutes, with a salt spray deposition rate of 1.0mL/(h·80cm²) to 2.0mL/(h·80cm²). After 96 hours of continuous testing, the smart lock still functioned normally, and the keypad surface showed no signs of rust.
*Anti-tamper, anti-pry protection: When the Xiaomi Self-Install Smart Lock keypad is pried up, it will emit a warning sound and send an instant alert notification.
*Auto-lock requires the use of a door sensor. Without the door sensor, only scheduled auto-lock is available.
*The lock has passed 100,000 open-and-close cycle tests, simulated mechanically to replicate manual use. Data comes from Lingdu Laboratory.
*Voice unlock requires pairing with a third-party smart speaker that supports Matter. For an optimal user experience, it is recommended to use devices bound through Mi Home.
*The lock is not waterproof. Please use in a dry environment.
*When hanging or sticking the product, ensure you press and hold for approximately 60 seconds to ensure proper adhesion.
*After adhesive installation, to avoid damage to the product or wall surface, do not forcibly remove the product. If removal is necessary, it is recommended to soften the adhesive by heating it with a hairdryer first before carefully peeling it off.
*The operating temperature range of this product is -10°C to 55°C. Using it outside this range may damage the device.
*The operating humidity range of this product is 0% RH to 93% RH. Please avoid using it in high-humidity or harsh environments.
*This product is not a toy and contains small parts. Please keep out of reach of children to prevent choking or other hazards caused by accidental ingestion of small components.
*Do not throw the battery into fire or high-temperature furnaces, or mechanically crush or cut the battery, as this may cause an explosion.
*If the battery compartment does not close securely, stop using the product and keep it away from children.
*After the keypad batteries are depleted, replace them with alkaline AA batteries. Using incorrect battery types may pose an explosion risk.
