Specifications

ModelPB2045MI

Battery typeLithium-ion battery

Rated capacity*12000mAh (5V⎓3A)

Rated energy74Wh (7.4V 10000mAh)

Dimensions127×70.5×30.5mm (excluding integrated cable)

Net weightApprox. 367g

Operating temperature5°C–35°C

Input portsUSB-C / Integrated USB-C cable

Output portsUSB-C /Integrated USB-C cable / USB-A

InputIntegrated USB-C cable (IN1): 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A

USB-C (IN2): 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A

Output45W Max. multi-port output: 5V⎓3A

USB-C (OUT1): 5V⎓3A 9V⎓3A 11V⎓4.IA 12V⎓3A 15V⎓3A 20V⎓2.25A

USB-C (OUT2): 5V⎓3A, 9V⎓3A, 11V⎓4.1A, 12V⎓3A, 15V⎓3A, 20V⎓2.25A

USB-A (OUT3): 5V⎓3A, 9V⎓2.23A, 10V⎓2.25A, 12V⎓1.67A

* Rated capacity: When operating at 5V⎓3A, the power bank delivers a minimum output capacity of 12000mAh.

Package contents

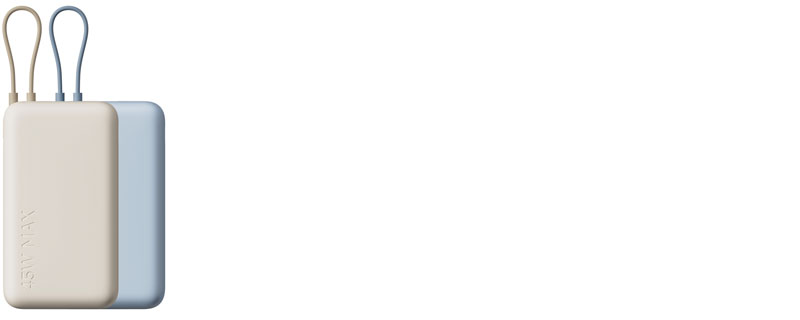

Xiaomi Power Bank 20000 45W Boost (Integrated Cable) × 1

User manual x 1
